Thread Ring Gauge Precision Internal Thread Measurement & Inspection
-
ハイライト
precision thread ring gauge
,internal thread measurement tool
,metric thread inspection gauge
-
保証一年
-
タイプスレッドリング・ゲーマー
-
測定メトリック
-
材料ツールスチール
-
スレッド仕様M80x1.5-6H
-
使用法作業と検査のため
-
形ラウンド
-
処理細かいラッピング
-
パッケージABSボックス
-
起源の場所中国シャーンクシ
-
ブランド名KM
-
証明ISO DIN GB RoHS
-
モデル番号KM-R800
-
パッケージの詳細ABSボックス14*14*3cm/ピース0.74kg/ピース
-
受渡し時間15日以内
-
支払条件T/T、L/C、D/P、D/A、Western Union、PayPal、MoneyGram
-
供給の能力50000ピース/月
Thread Ring Gauge Precision Internal Thread Measurement & Inspection
Thread Ring Gauge Precision Internal Thread Measurement & Inspection
Product Description

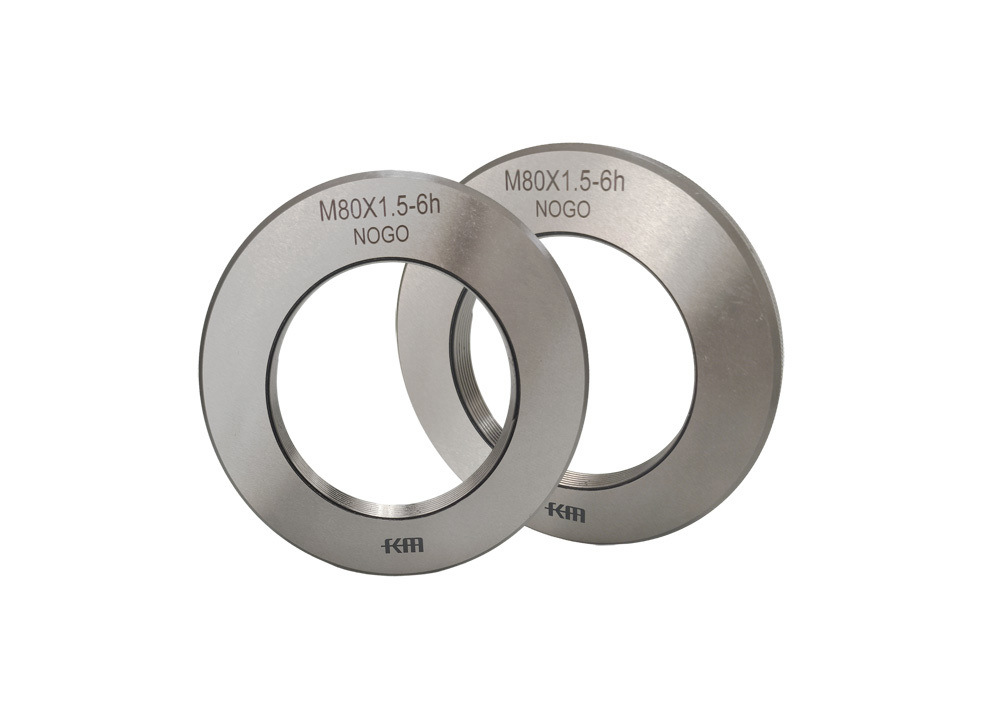

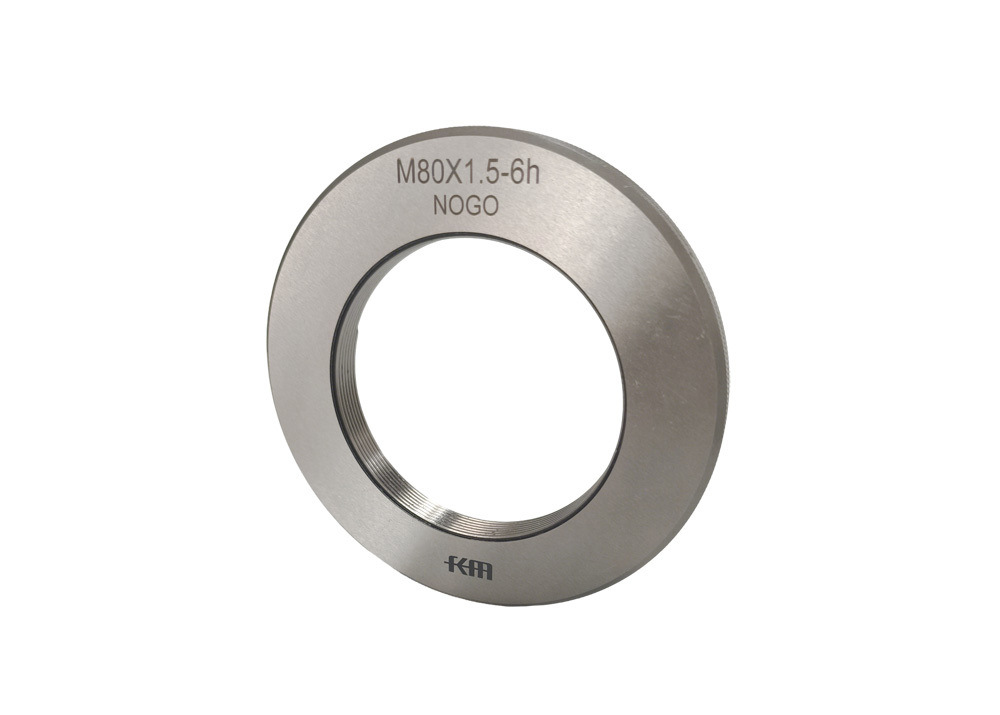

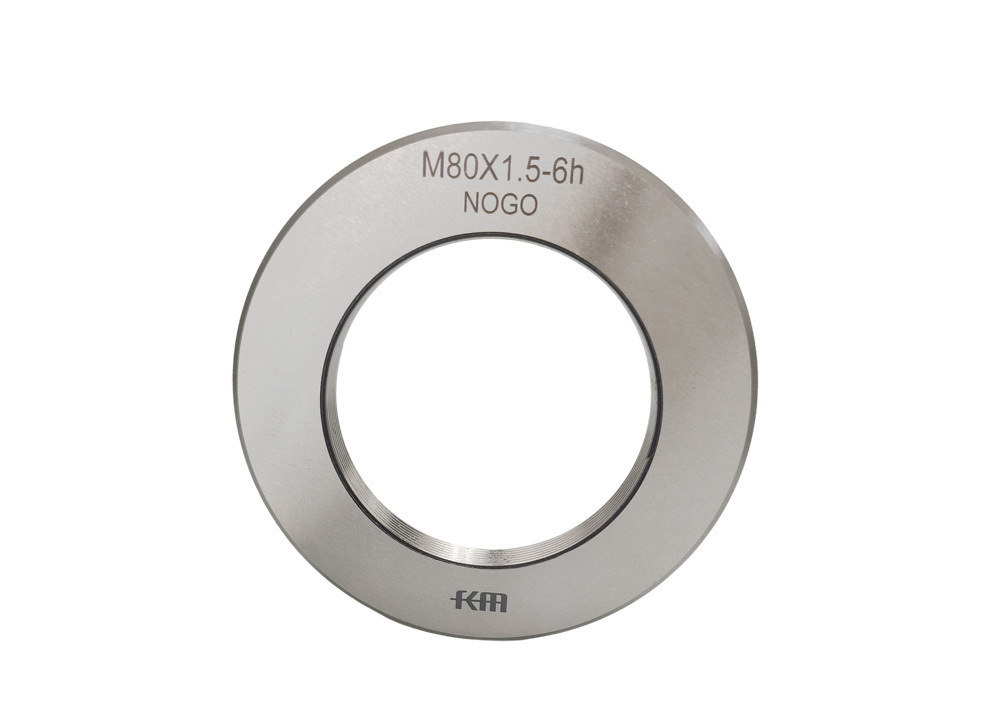

Metric thread ring gauges are precision inspection tools designed for checking the thread of outside diameter on screws, bolts, and threaded rods. These gauges typically feature normal accuracy classifications including 6g, 6h, 7g, 7h, 8g, and 8h.
Thread ring gauges are available in GO and NOGO types. The GO ring gauge is machined to a minus tolerance, verifying the maximum material limit of externally threaded components. The NOGO thread ring gauge is machined to a plus tolerance, verifying the minimum material limit of externally threaded components.
Our facility utilizes first-grade internal thread machining centers and measuring equipment to provide high-precision thread ring gauges to customers worldwide.
Quick Details
- Metric thread ring gauge.
- Accuracy: 6g, 6h, 7g, 7h, 8g, 8h, etc.
- GO and NO GO types available.
- Conforms to standards: DIN13, DIN2280-89.
- Wear-resistant and corrosion-resistant construction.
- Stable structure for easy operation.
- Supplied in fitted protective case.
Specifications
| Order No. | Size | Coarse | Fine | Accuracy | ||||
| Pitch 1 | Pitch 1 | Pitch 1 | Pitch 1 | Pitch 1 | Pitch 1 | |||
| KM-R001 | M1.0 | 0.25 | 0.20 |
3h 4h 5g6g 5h4h 5h6h 6e 6f 6g 6h 7g6g 7h6h 8g 8h |
||||
| KM-R011 | M1.1 | 0.25 | 0.20 | |||||
| KM-R012 | M1.2 | 0.25 | 0.20 | |||||
| KM-R014 | M1.4 | 0.30 | 0.20 | |||||
| KM-R016 | M1.6 | 0.35 | 0.20 | |||||
| KM-R018 | M1.8 | 0.35 | 0.20 | |||||
| KM-R020 | M2.0 | 0.40 | 0.25 | |||||
| KM-R022 | M2.2 | 0.45 | 0.25 | |||||
| KM-R025 | M2.5 | 0.45 | 0.35 | |||||
| KM-R030 | M3.0 | 0.50 | 0.35 | |||||
| KM-R035 | M3.5 | 0.60 | 0.35 | |||||
| KM-R040 | M4.0 | 0.70 | 0.50 | |||||
| KM-R050 | M5.0 | 0.80 | 0.50 | |||||
| KM-R060 | M6.0 | 1.00 | 0.75 | 0.50 | ||||
| KM-R080 | M8.0 | 1.25 | 1.00 | 0.75 | 0.50 | |||
| KM-R100 | M10.0 | 1.50 | 1.25 | 1.00 | 0.75 | 0.50 | ||
| KM-R120 | M12.0 | 1.75 | 1.50 | 1.25 | 1.00 | 0.75 | 0.50 | |
| KM-R140 | M14.0 | 2.00 | 1.50 | 1.25 | 1.00 | 0.75 | 0.50 | |
| KM-R160 | M16.0 | 2.00 | 1.50 | 1.00 | 0.75 | 0.50 | ||
| KM-R180 | M18.0 | 2.50 | 2.00 | 1.50 | 1.00 | 0.75 | 0.50 | |
| …… | …… | …… | …… | …… | …… | …… | ||
| KM-R320 | M320 | |||||||
Applications
Threaded ring gauges are primarily used to measure thread diameter and pitch. These precision tools offer high accuracy, wide measurement range, and simple operation, making them ideal for machinery manufacturing, aerospace, automotive manufacturing, and other industrial applications.
Precautions
- Avoid touching the working surface of the plug ring gauge with bare hands to prevent rust.
- Store the gauge on a stable surface like a tool cabinet or wooden backing plate, not on machine tool holders or guide rails.
- Regularly inspect for damage, rust, or deformation. If rust appears, soak in gasoline, carefully wipe clean, and apply anti-rust oil.
- Never store working surfaces of two plug ring gauges together to prevent adhesion and potential damage.
- After use, clean thoroughly and store in dry conditions.
Frequently Asked Questions
Who are we?
Deko Corporation specializes in the development, manufacture, and marketing of KM brand precision measuring tools in China mainland.
What products do we carry?
Our product line includes dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors, gauge blocks, levels, and more.
What are the terms of trade?
We support FOB, CFR, CIF, and EXW trade terms.
What are the forms of payment?
We accept T/T, L/C, D/A, D/P, PayPal, and Western Union.
Do we accept customization?
Yes, OEM services are available.
How about after-sales service?
All products come with a one-year warranty. If you receive defective accessories, we will ship replacement parts or products. Our strict calibration and inspection processes ensure product quality you can trust.
