magnetic dial indicator base
,fine adjustment magnetic stand
,strong hold indicator mount
-
保証一年
-
タイプ磁気スタンド
-
材料ステンレス鋼
-
色黒
-
関数良い 調整
-
磁力80kg
-
ベース (L×W×H)117×50×55mm
-
パッケージ紙の箱
-
起源の場所中国シャーンクシ
-
ブランド名KM
-
証明ISO DIN GB RoHS
-
モデル番号KM-603-01
-
パッケージの詳細紙箱 25*14*9cm/パーツ 1.50kg/パーツ
-
受渡し時間15日以内
-
支払条件T/T、L/C、D/P、D/A、Western Union、PayPal、MoneyGram
-
供給の能力50000ピース/月

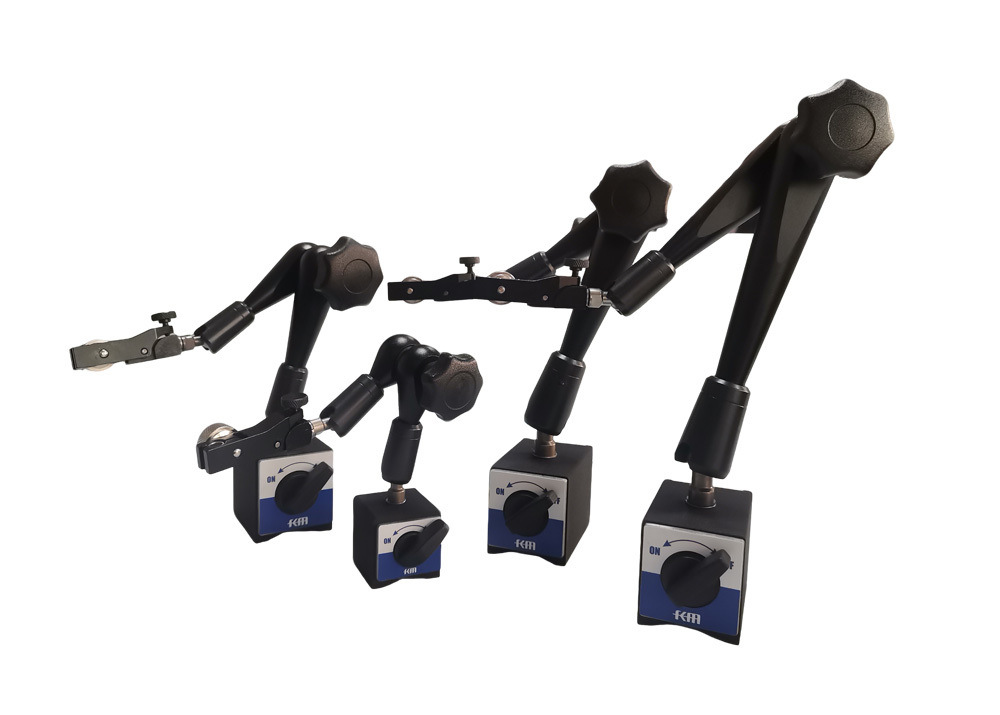

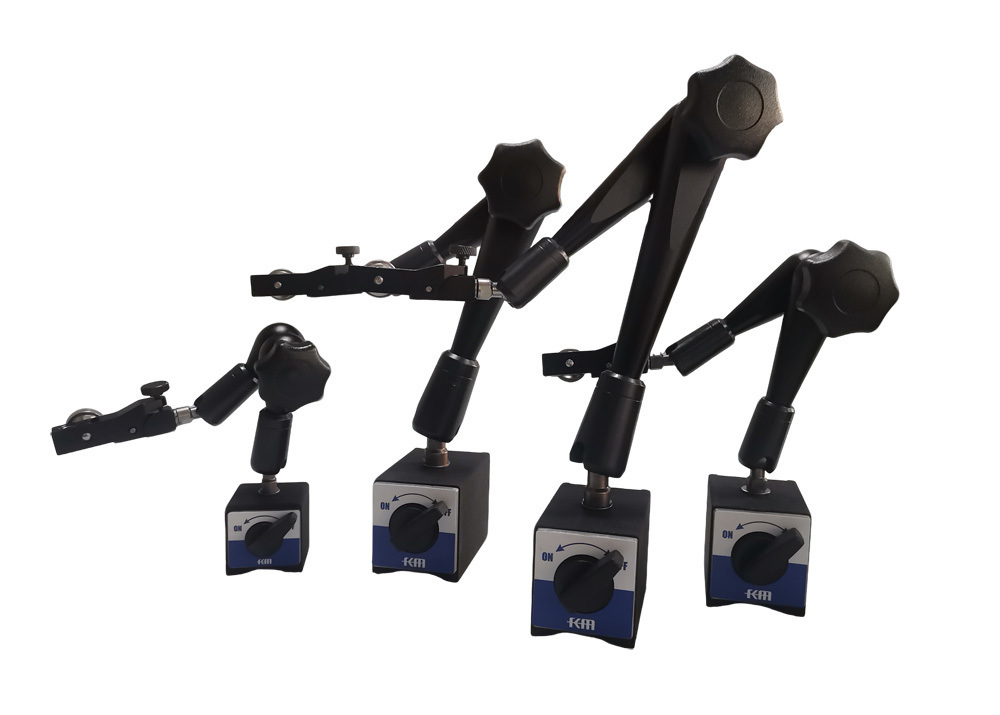

Magnetic Base for Dial Indicator with Fine Adjustment & Strong Hold
Magnetic Base for Dial Indicator with Fine Adjustment & Strong Hold
80kg Magnetic Force Black Forced Locking Pole Type Magnetic Stand
Key Features:
- New type locking mechanism with super strong-arm lock.
- Magnetic base with convenient ON/OFF switch.
- Precision fine adjustment mechanism for higher accuracy.
- Reinforced arm lock for enhanced stability.
- Dovetail groove compatible with test indicators.
- Universal clamp hole for both metric and inch indicators.
Product Description
Our premium mechanical universal magnetic base stand features a super strong arm lock system. All wear-resistant components are constructed from hardened high-grade steel with hardness reaching HRC 58°+, with main parts precision-machined on CNC lathes.
This forced locking magnetic base delivers powerful magnetic force ranging from 50kg to 100kg, ensuring secure attachment to any ferromagnetic surface. The included fitted case provides safe transportation and storage. Ideal for both general workshops and precision machine shops.
Technical Specifications
| Order No. | Magnetic Force | Applicable Holding Stem Dia. | Base (L×W×H) | Arm Length | Overall Length |
|---|---|---|---|---|---|
| KM-603-01 | 50kg | 6mm/8mm, Dovetail | 40×40×40mm | 182mm | 222mm |
| KM-603-02 | 50kg | 6mm/8mm, 3/8''/Dovetail | 40×40×40mm | 220mm | 260mm |
| KM-603-03 | 80kg | 6mm/8mm, 3/8''/Dovetail | 60×50×55mm | 295mm | 350mm |
| KM-603-04 | 100kg | 6mm/8mm, 3/8''/Dovetail | 73×50×55mm | 355mm | 410mm |
| KM-603-05 | 100kg | 6mm/8mm, 3/8''/Dovetail | 73×50×55mm | 415mm | 470mm |
Usage Precautions
- Place on a flat, dry, non-magnetic work surface.
- Adjust to proper position before fixing measured objects.
- Minimize vibrations and interference during measurement.
- Perform regular maintenance checks and replace worn parts.
Industrial Applications
Essential for machine building applications, this magnetic stand excels in inspecting machine tool accuracy, workpiece dimensional accuracy, and detecting concentricity and parallelism during assembly processes. Ensures product quality and performance in precision manufacturing environments.
Frequently Asked Questions
Who are we?
Deko Corporation specializes in developing, manufacturing, and marketing KM brand precision measuring tools in China mainland.
What products do we carry?
Our product line includes dial indicators, micrometers, calipers, bore gauges, height gauges, thickness gauges, depth gauges, bevel protractors, gauge blocks, levels, and more.
What are the terms of trade?
We support FOB, CFR, CIF, and EXW trade terms.
What payment methods do we accept?
We accept T/T, L/C, D/A, D/P, PayPal, and Western Union.
Do we offer customization?
Yes, OEM services are available.
What is your after-sales service policy?
All products come with a one-year warranty. We promptly replace any defective parts or products upon receipt. Our strict calibration and inspection processes ensure superior product quality.
