ハイライト
car tire tread depth gauge
,0-25mm tire tread gauge
,precision tire tread depth tool
-
保証一年
-
測定メトリック/インチ
-
製品タイプデジタルギア歯のキャリパー
-
材料ステンレス鋼
-
範囲0-25mm/0-1"
-
解決0.01mm/0.0005′′
-
正確さ±0.02mm
-
主な用途ギア製造
-
特徴デジタルLCDディスプレイ
-
測定目的タイヤトレッドの深さを確認します
-
パッケージABSボックス
-
起源の場所中国シャーンクシ
-
ブランド名KM
-
証明ISO DIN GB RoHS
-
モデル番号KM-DTT-25
-
パッケージの詳細ABSボックス32*15*4cm/ピース0.50kg/ピース
-
受渡し時間15日以内
-
支払条件T/T、L/C、D/P、D/A、Western Union、PayPal、MoneyGram
-
供給の能力50000ピース/月

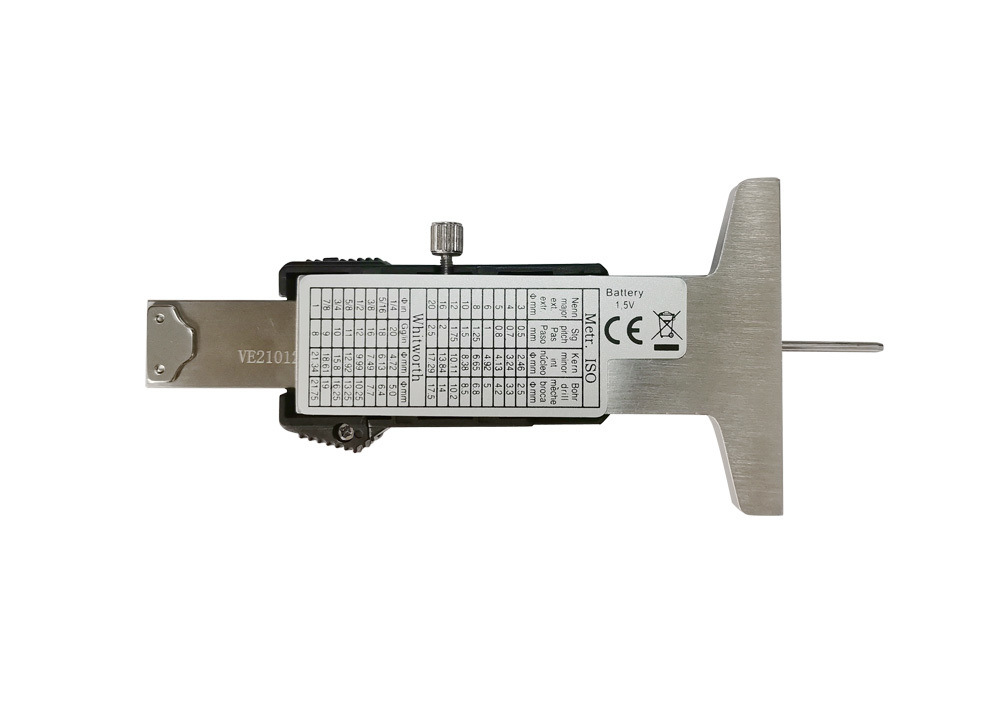

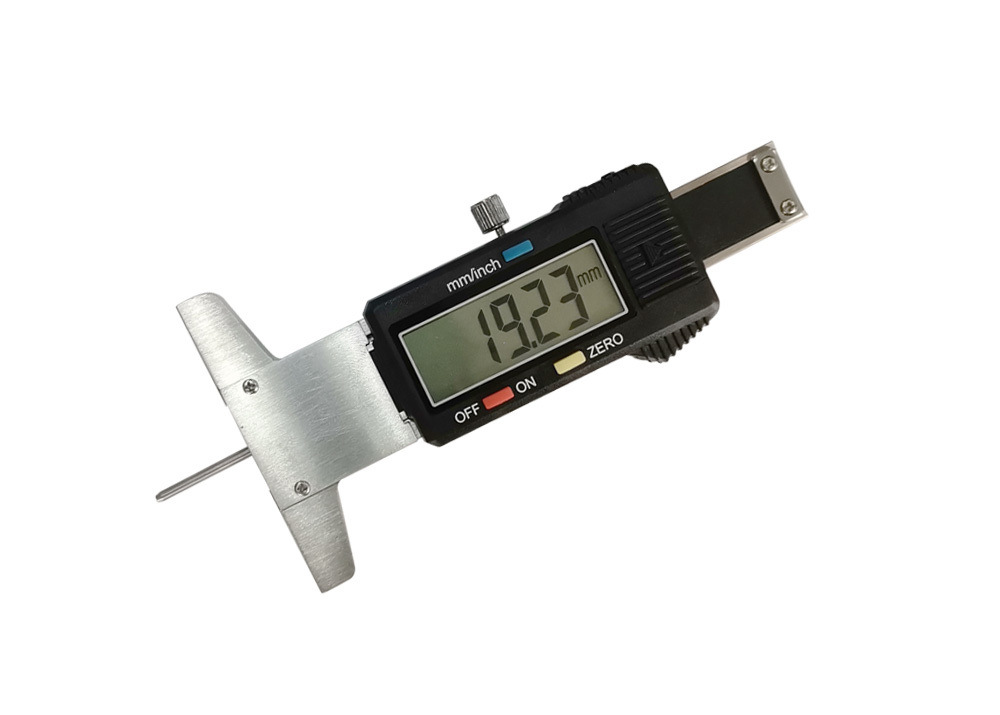

Car Tire Tread Depth Gauge 0-25mm with Resolution 0.01mm
Car Tire Tread Depth Gauge 0-25mm with Resolution 0.01mm
Digital tire depth gauge with thin rod is a high-precision measuring tool designed for accurate measuring depth of the tread on car tires
or measurements in narrow or hard-to-reach areas. Electronic tire tread depth gauge is made of high-strength stainless body, they have strong
resistance to wear and corrosion. Clear LCD display that displays the measurement results in real time and is easy for the user to read at any time.
Tire tread depth gauge is essential for vehicle maintenance. It measures the depth of your tire treads, indicating when they need replacing.
This tool is crucial for ensuring road safety and enhancing vehicle performance.
Key Features
- Essential tool for vehicle maintenance and safety checks.
- Large LCD display for clear readings.
- Inch/metric conversion capability.
- Manual ON/OFF with auto power-off function.
- Zero-setting at any position.
- Hardened stainless steel construction.

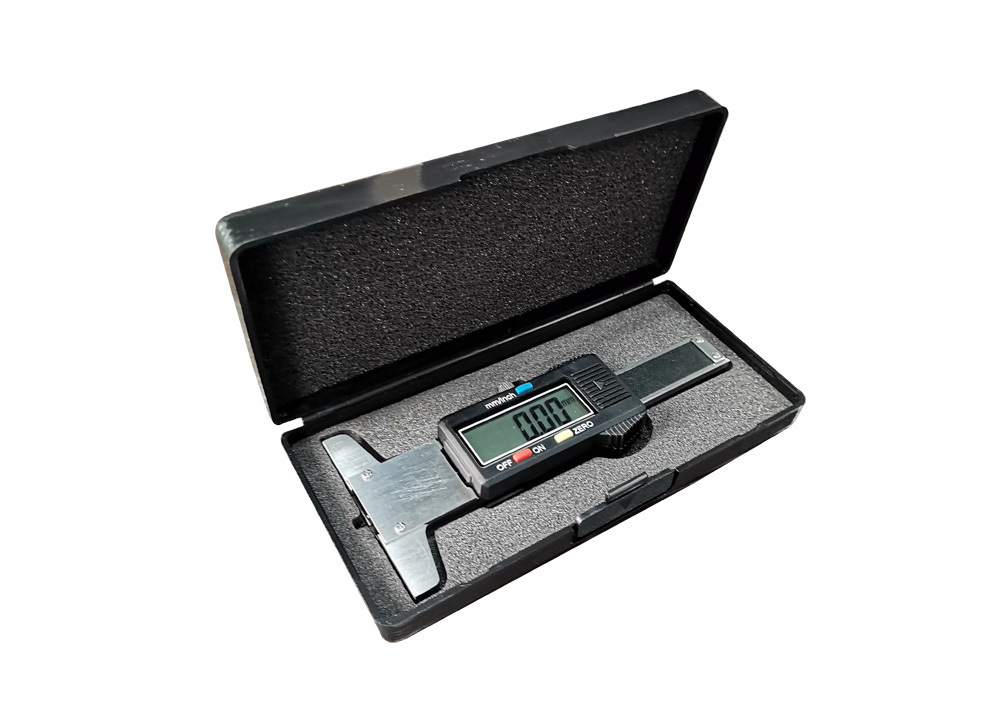

- Includes protective storage case.
Technical Specifications

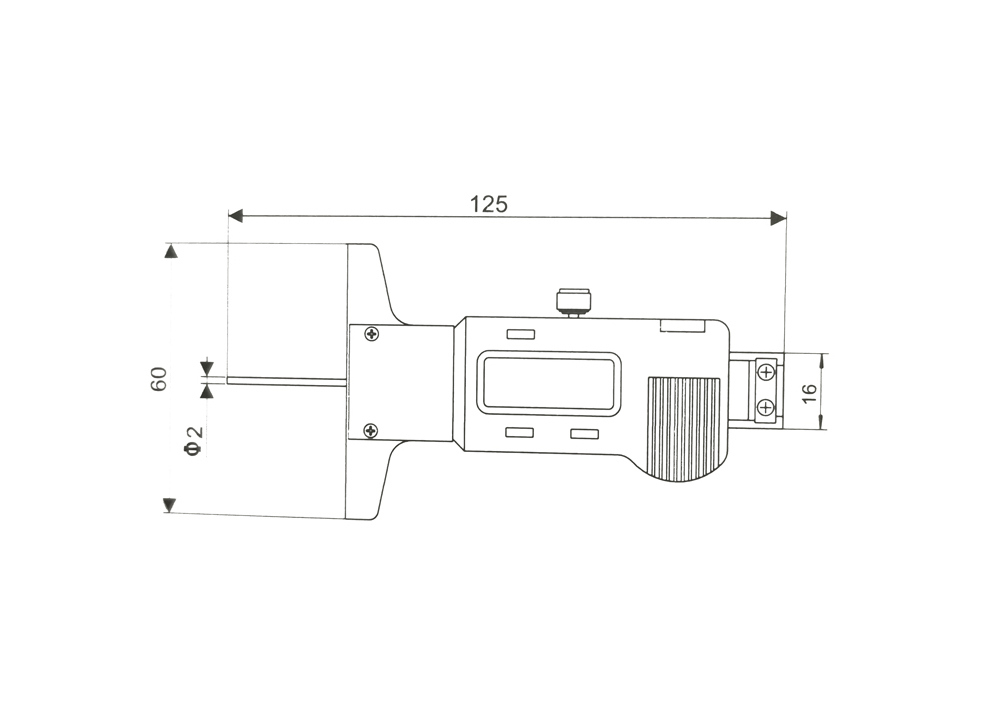

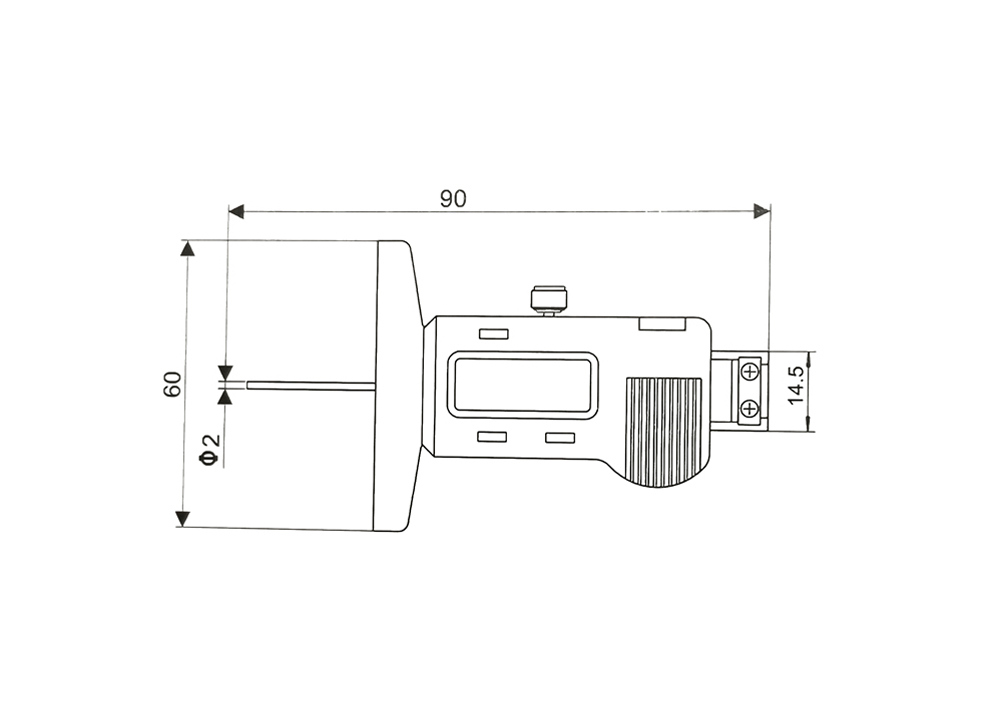

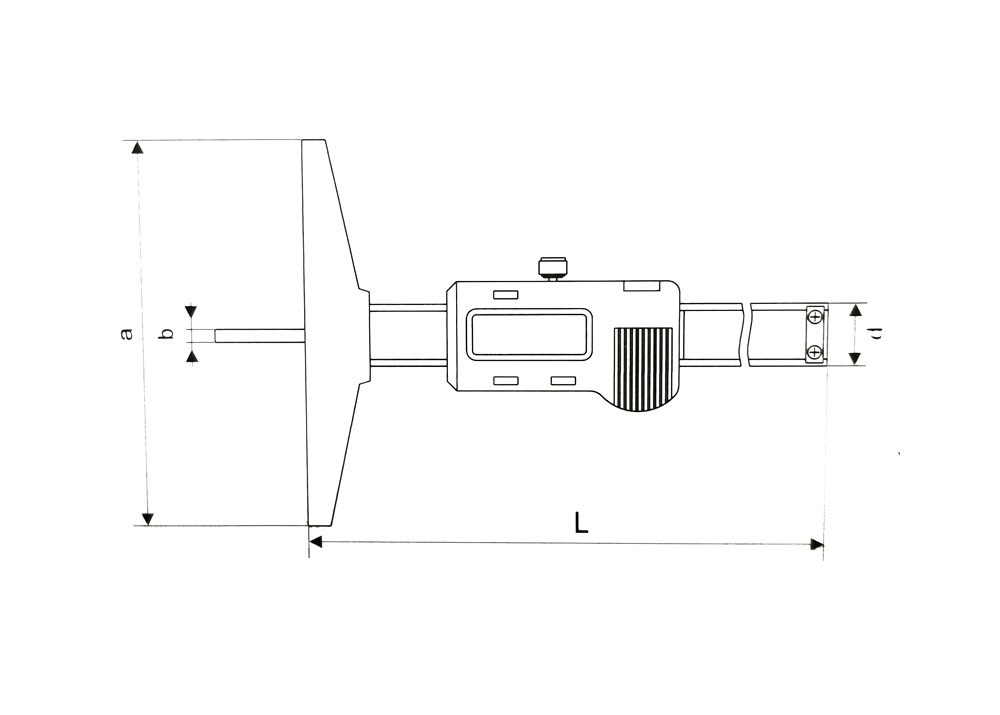

| Order No. | Range | Resolution | Accuracy | L | a | b | d |
|---|---|---|---|---|---|---|---|
| KM-DTT-25 | 0-25mm/0-1″ | 0.01mm/0.0005″ | ±0.02mm | 90mm | 60mm | 2mm | 13mm |
| KM-DTT-30 | 0-30mm/0-1.2″ | 0.01mm/0.0005″ | ±0.02mm | 125mm | 60mm | 2mm | 16mm |
| KM-DTT-50 | 0-50mm/0-2″ | 0.01mm/0.0005″ | ±0.02mm | 130mm | 100mm | 2mm | 16mm |
| KM-DTT-100 | 0-100m/0-4″ | 0.01mm/0.0005″ | ±0.02mm | 180mm | 100mm | 4mm | 16mm |
| KM-DTT-150 | 0-150mm//0-6″ | 0.01mm/0.0005″ | ±0.02mm | 230mm | 100mm | 4mm | 16mm |
Applications
- Tire tread depth measurement for vehicle maintenance.
- Depth measurement of micro-holes and small-diameter bores.
- Measurement of mold cavities and ejection pin holes.
- Quality control of CNC-machined components.
- Inspection of fine engraving depths in die-making.
Usage Precautions
- Clean measurement surfaces of debris before use.
- Gently clean after each use with a soft cloth.
- Store in protective case with rod cover.
- Keep hands clear of moving parts during measurement.
- Never clamp the rod in vises or fixtures.
- Use only for intended depth measurement purposes.
Frequently Asked Questions
Who are we?
Deko Corporation specializes in the development, manufacture and marketing of KM brand precision measuring tools in China mainland.
What products do we carry?
Our product line includes dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges,
bevel protractors, gauge blocks, levels, and other precision measuring instruments.
What are the terms of trade?
We support FOB, CFR, CIF, and EXW trade terms.
What are the forms of payment?
We accept T/T, L/C, D/A, D/P, PayPal, and Western Union.
Do we accept customization?
Yes, OEM services are available for custom requirements.
How about after-sales service?
All products come with a one-year warranty. If you receive any defective items, we will promptly ship replacement parts or products.
Our strict calibration and inspection processes ensure high product quality.
