Precision Thread Plug Gauge M48 NOGO Side for Manufacturing Inspection
-
ハイライト

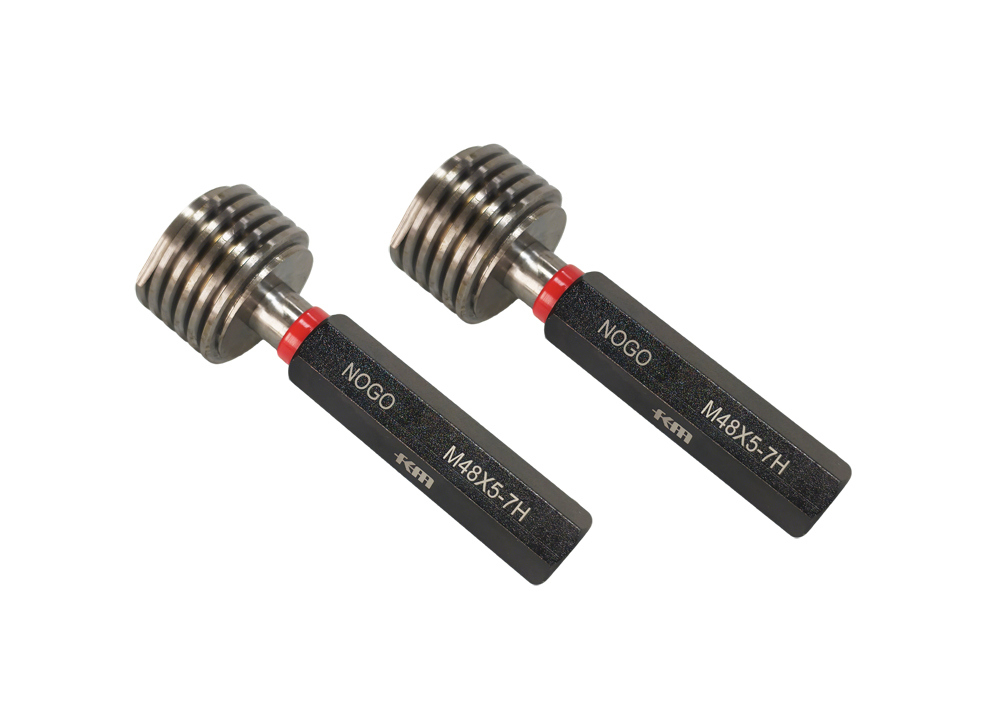

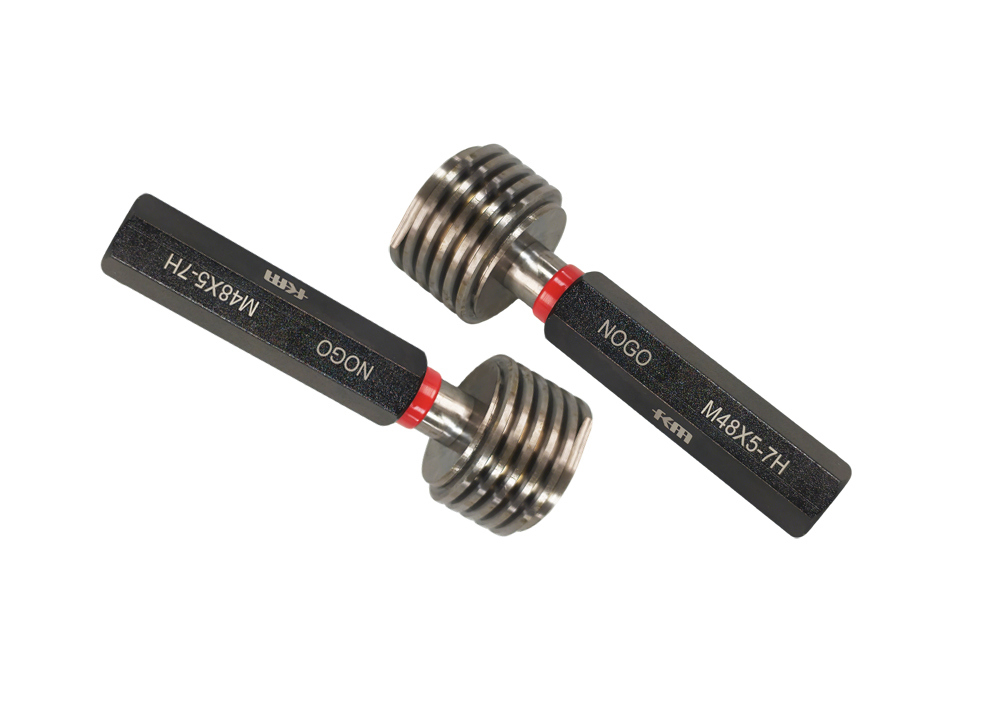

Manufacturing Inspection M48 Thread Plug Gauge
,Precision Thread Plug Gauge
,M48 NOGO Thread Plug Gauge
-
保証一年
-
タイプメトリックスレッドプラグゲージ
-
材料ツールスチール
-
適合標準din13
-
スレッド仕様M48x5-7H ゴーノーゴ
-
正確さ5G、5H、6G、6H、7G、7Hなど
-
使用法作業と検査のため
-
測定オブジェクトねじ付きまたはタップ穴などを確認します
-

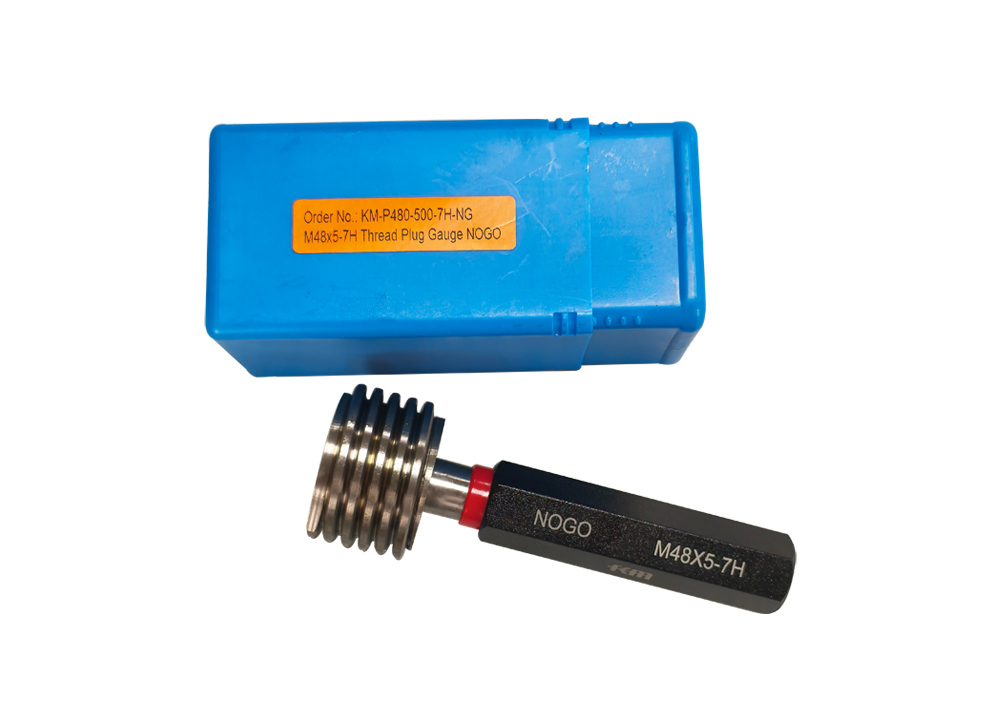

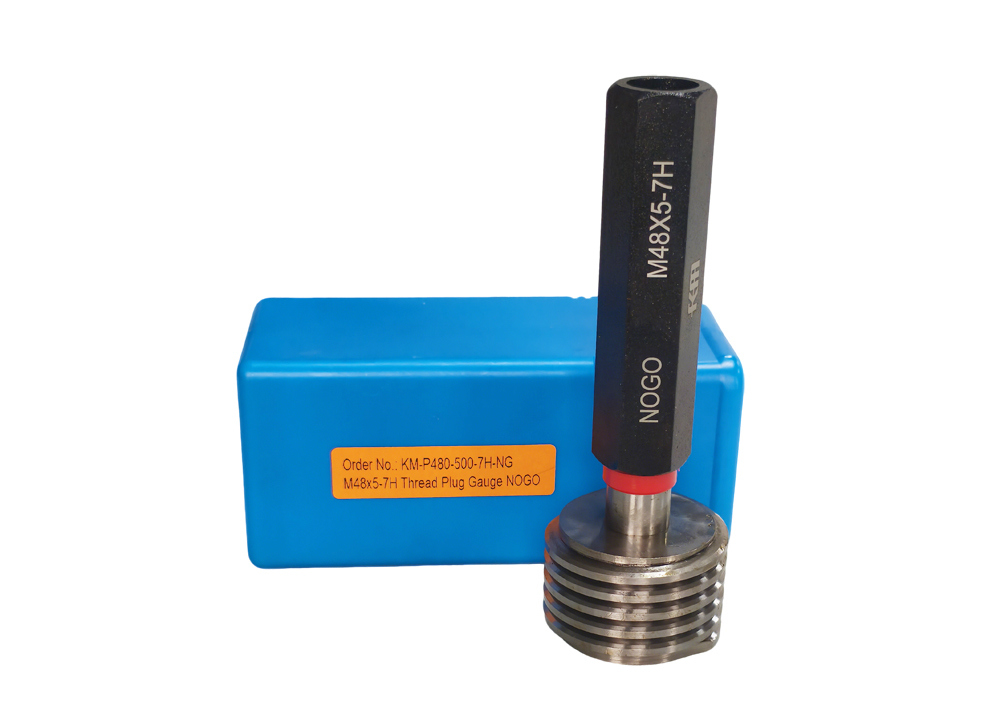

パッケージABSボックス
-
起源の場所中国シャーンクシ
-
ブランド名KM
-
証明ISO DIN GB RoHS
-
モデル番号KM-P480
-
パッケージの詳細ABS ボックス 16*5*5 センチメートル/ピース 0.80kg/ピース
-
受渡し時間15日以内
-
支払条件T/T、L/C、D/P、D/A、Western Union、PayPal、MoneyGram
-
供給の能力50000ピース/月
Precision Thread Plug Gauge M48 NOGO Side for Manufacturing Inspection
Precision Thread Plug Gauge M48 NOGO Side for Manufacturing Inspection
Product Description
These metric plug ring gauges are precision metrology tools designed for checking threaded or tapped holes. They verify proper thread type, major diameter, minor diameter, pitch diameter, and thread pitch against mating thread gauges.
Our facility features first-grade thread machining centers and measuring equipment to produce high-precision thread ring gauges for global customers. Plug gauges deliver fast results with simple operation principles that require minimal training.
For small threaded parts, gauges are double-ended with GO and NOGO sides. Larger parts may use separate pieces. Acceptance criteria: the GO gauge must pass through the entire length with minimal rotational force, while the NOGO gauge should not exceed 2 turns at either end.
Quick Details
- Metric thread plug gauge.
- Accuracy: 5g,5h, 6g,6h,7g,7h, etc.
- Available in GO, NOGO, and combination GO/NOGO types.
- Conforms to DIN13 standard.
- Wear-resistant, corrosion-resistant construction with stable structure.
- Includes fitted case.
Specifications
| Order No. | Size | Coarse | Fine | Accuracy | ||||
| Pitch 1 | Pitch 2 | Pitch 3 | Pitch 4 | Pitch 5 | Pitch 6 | |||
| KM-P001 | M1.0 | 0.25 | 0.20 |
4h 4h5h 5g 5h 5h6h 6g 6h 7g 7h |
||||
| KM-P011 | M1.1 | 0.25 | 0.20 | |||||
| KM-P012 | M1.2 | 0.25 | 0.20 | |||||
| KM-P014 | M1.4 | 0.30 | 0.20 | |||||
| KM-P016 | M1.6 | 0.35 | 0.20 | |||||
| KM-P018 | M1.8 | 0.35 | 0.20 | |||||
| KM-P020 | M2.0 | 0.40 | 0.25 | |||||
| KM-P022 | M2.2 | 0.45 | 0.25 | |||||
| KM-P025 | M2.5 | 0.45 | 0.35 | |||||
| KM-P030 | M3.0 | 0.50 | 0.35 | |||||
| KM-P035 | M3.5 | 0.60 | 0.35 | |||||
| KM-P040 | M4.0 | 0.70 | 0.50 | |||||
| KM-P050 | M5.0 | 0.80 | 0.50 | |||||
| KM-P060 | M6.0 | 1.00 | 0.75 | 0.50 | ||||
| KM-P080 | M8.0 | 1.25 | 1.00 | 0.75 | 0.50 | |||
| KM-P100 | M10.0 | 1.50 | 1.25 | 1.00 | 0.75 | 0.50 | ||
| KM-P120 | M12.0 | 1.75 | 1.50 | 1.25 | 1.00 | 0.75 | 0.50 | |
| KM-P140 | M14.0 | 2.00 | 1.50 | 1.25 | 1.00 | 0.75 | 0.50 | |
| KM-P160 | M16.0 | 2.00 | 1.50 | 1.00 | 0.75 | 0.50 | ||
| KM-P180 | M18.0 | 2.50 | 2.00 | 1.50 | 1.00 | 0.75 | 0.50 | |
| …… | …… | …… | …… | …… | …… | …… | ||
| KM-P320 | M320 | |||||||
Applications
Thread plug gauges are essential for inspecting thread size compliance across industries including automotive manufacturing, aerospace, machining, and electronic processing. They ensure thread accuracy and improve product qualification rates for both standard and non-standard thread products.
Precautions
- Avoid touching working surfaces to prevent rust.
- Store on appropriate surfaces (tool cabinet, wooden backing plate) - never on machine tool holders or guide rails.
- Regularly inspect for damage, rust, or deformation.
- Treat rust with gasoline soak, careful wiping, and anti-rust oil application.
- Never store working surfaces together to prevent adhesion damage.
- Clean and dry thoroughly after each use.
FAQ
Who are we?
Deko Corporation specializes in developing, manufacturing, and marketing KM brand precision measuring tools in China mainland.
What products do we carry?
Our product line includes dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors,
gauge blocks, levels, and more.
How about after-sales service?
All products come with a one-year warranty. We replace defective parts or products immediately upon receipt. Our strict calibration and inspection
processes ensure exceptional product quality.
