ハイライト
Measuring Device Magnetic Stand
,Flexible Base Holder Magnetic Stand
,80kg Magnetic Stand
-
保証一年
-
タイプ磁気スタンド
-
材料アルミニウム合金
-
アームフレキシブルステム
-
磁力80kg
-
ベース ((LxWxH)60x50x55mm
-
重さ1.5kg
-
穴を掘るM8×1.25mm
-
腕の長さ360mm
-
パッケージ紙の箱
-
起源の場所中国シャーンクシ
-
ブランド名KM
-
証明ISO DIN GB RoHS
-
モデル番号KM-623-03
-
パッケージの詳細紙箱 25*10*5cm/パーツ 1.50kg/パーツ
-
受渡し時間15日以内
-
支払条件T/T、L/C、D/P、D/A、Western Union、PayPal、MoneyGram
-
供給の能力50000ピース/月

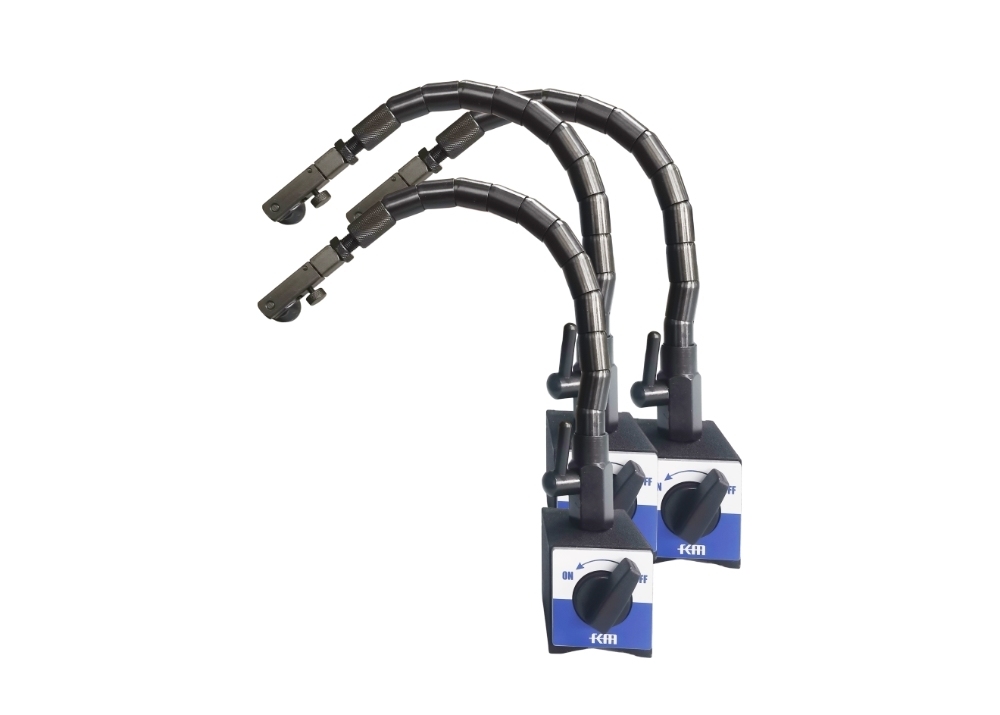

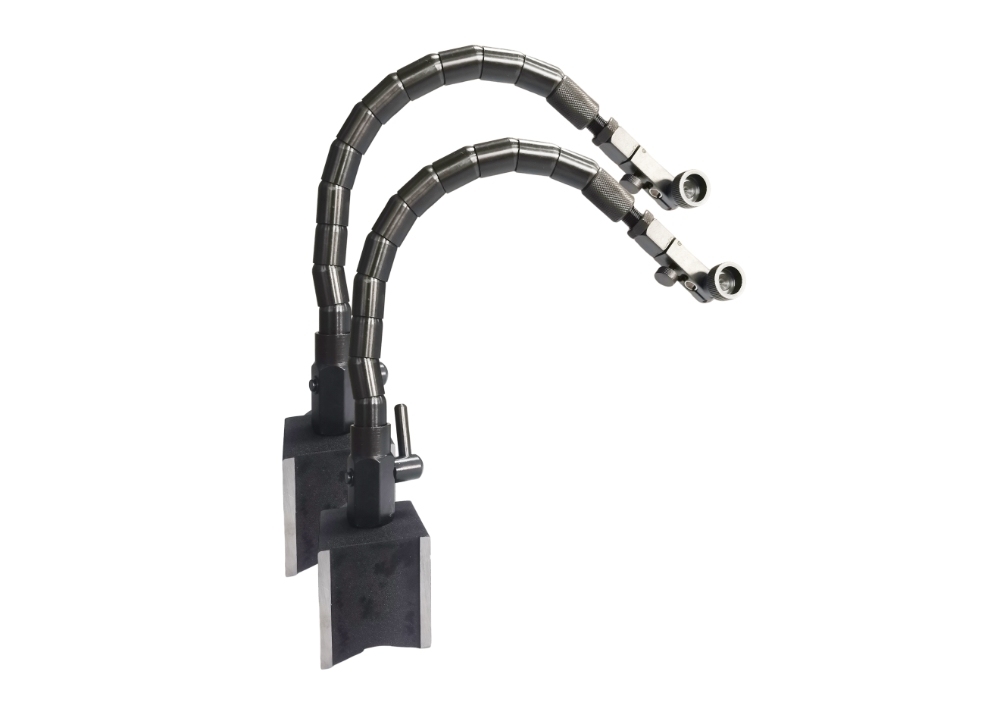

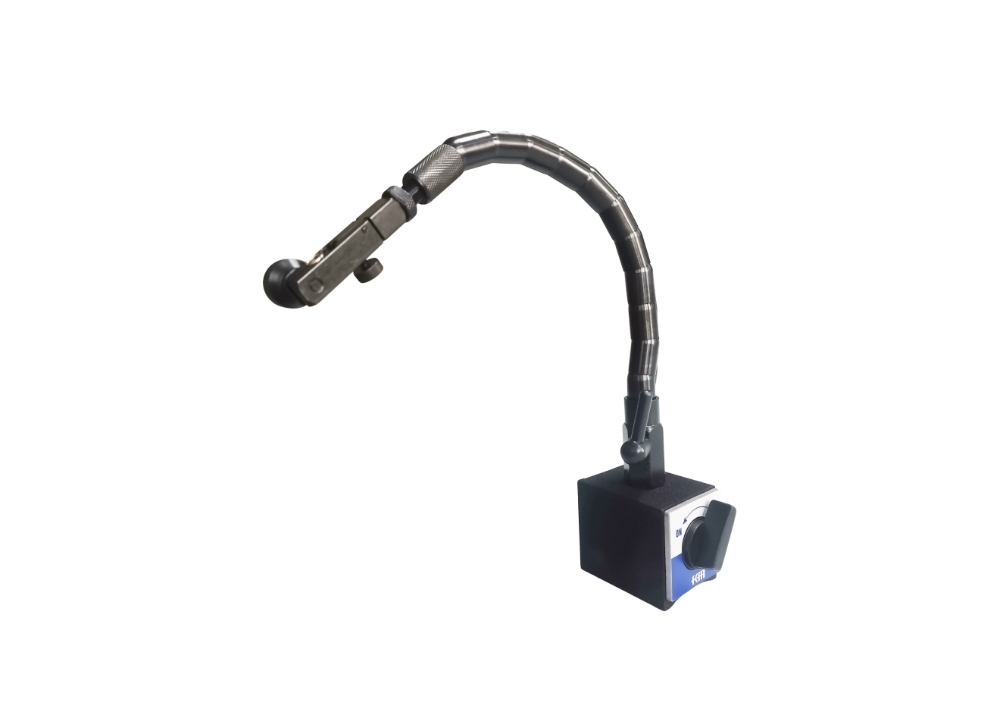

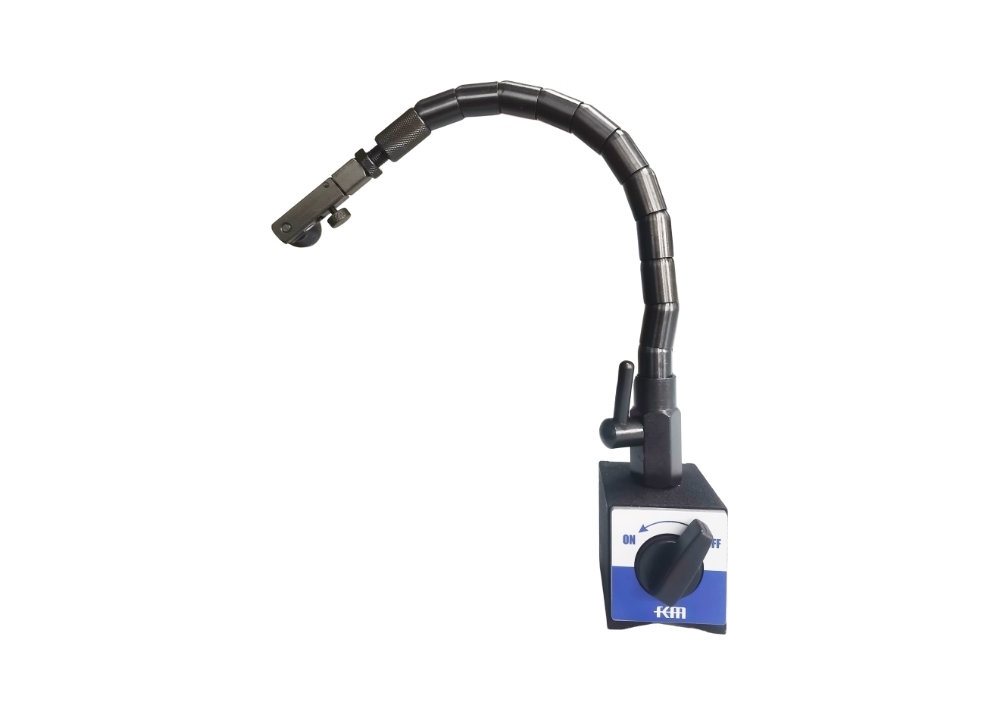

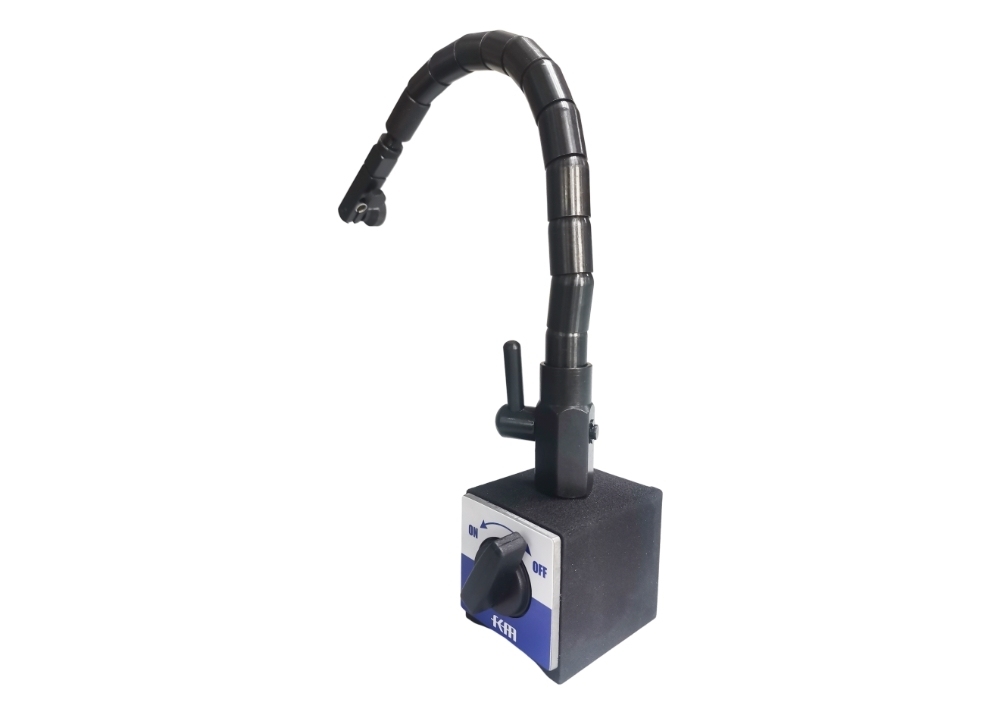

80kg Flexible Base Holder Magnetic Stand for Dial Test Indicator Measuring Device
This flexible stem magnetic base holder features an adjustable arm for versatile positioning, compatible with dial test indicators featuring dovetail grooves as well as standard dial indicator gauges with 8mm or 3/8" stems.
The 80kg magnetic force ensures secure attachment to any ferromagnetic surface, providing a stable platform for measurement tools. Includes a fitted case for safe transportation and storage. Ideal for general workshops and precision machine shops.
- Flexible arm for adjustable positioning
- Magnetic base with ON/OFF switch
- Dovetail groove for dial test indicators, compatible with 8mm or 3/8" stems
- Includes fitted case
| Order No. | Magnetic Force | Arm Length | Dia of Clamp Hole | Base (L×W×H) |
|---|---|---|---|---|
| KM-623-03 | 80kg | 360mm | 6.0mm/8.0mm/Dovetail | 60×50×55mm |
1. Place on a flat, dry, non-magnetic work surface
2. Adjust position via knob/screw for stable contact with test object
3. Prevent external vibrations during measurement
4. Regularly inspect for proper function and maintenance
Ideal for metalworking and machining processes to securely hold dial indicators, test indicators, and other measuring tools for precise measurements and alignment.
Deko Corporation specializes in developing, manufacturing, and marketing KM brand precision measuring tools in China mainland.
Dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors, gauge blocks, levels, and more.
All products include a one-year warranty. Defective accessories will be replaced promptly. Our strict calibration and inspection processes ensure reliable product quality.
