Mini 50kg Mechanical Magnetic Stands
,Measuring Instrument Magnetic Stands
,Precision Measuring Instrument Magnetic Stands
-
保証一年
-
タイプ磁気スタンド
-
測定オブジェクト試験指標について
-
材料ベースアルミニウム合金
-
特徴調整 と し て
-
磁力50kg
-
重さ0.40kg
-
ベース ((LxWxH)40×40×40mm
-
パッケージ紙の箱
-
起源の場所中国シャーンクシ
-
ブランド名KM
-
証明ISO DIN GB RoHS
-
モデル番号KM-633-02
-
パッケージの詳細紙箱 24*10*5cm/ピース 0.50kg/ピース
-
受渡し時間15日以内
-
支払条件T/T、L/C、D/P、D/A、Western Union、PayPal、MoneyGram
-
供給の能力50000ピース/月

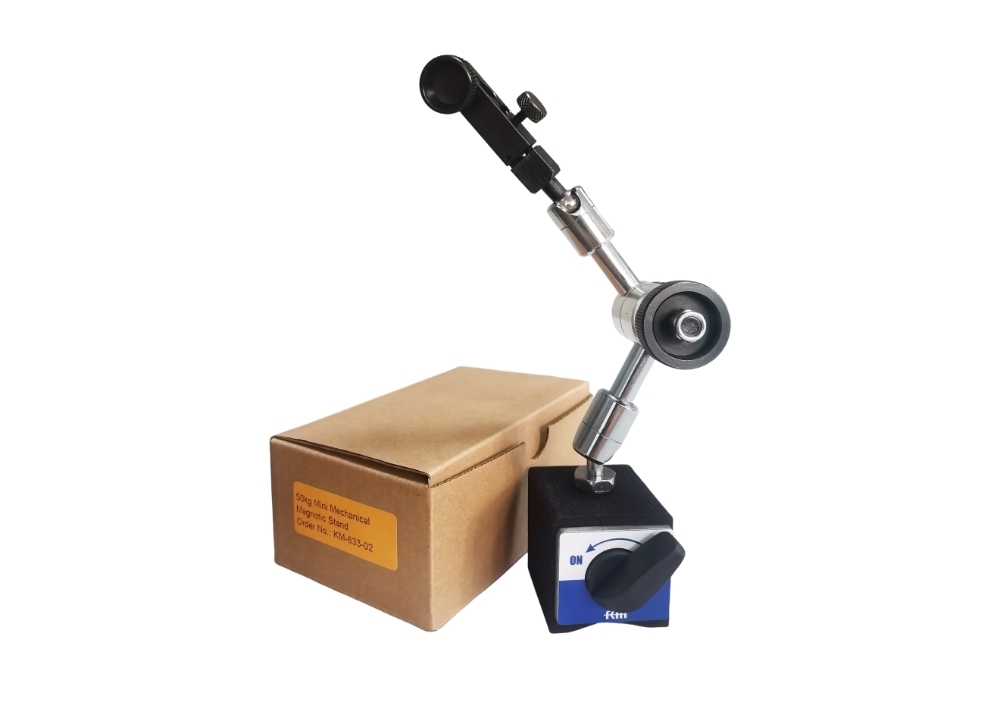

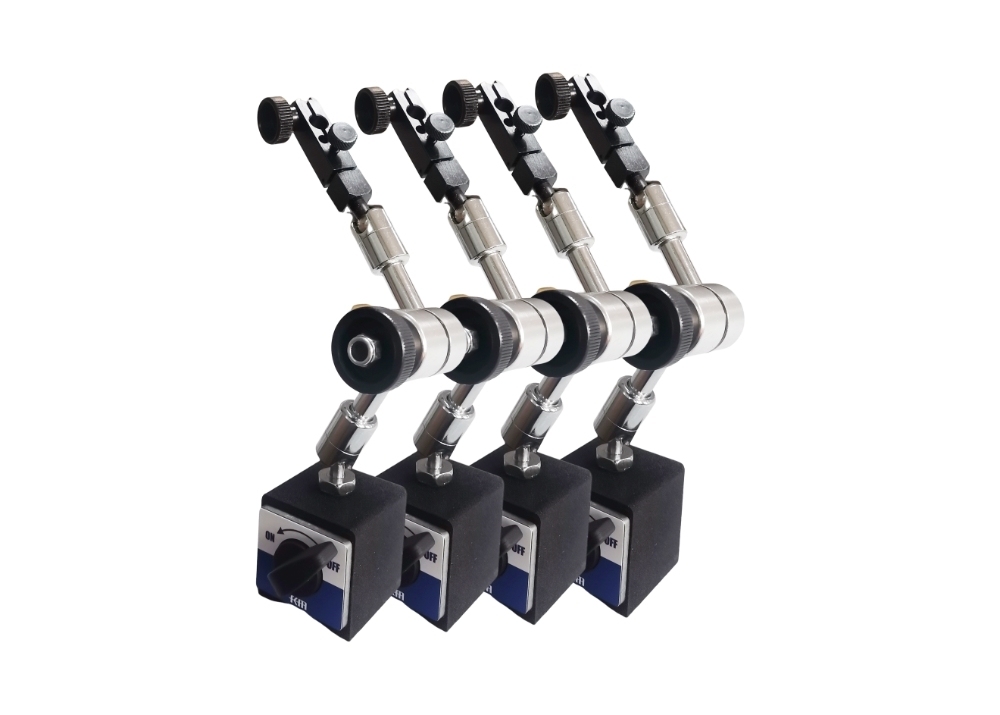

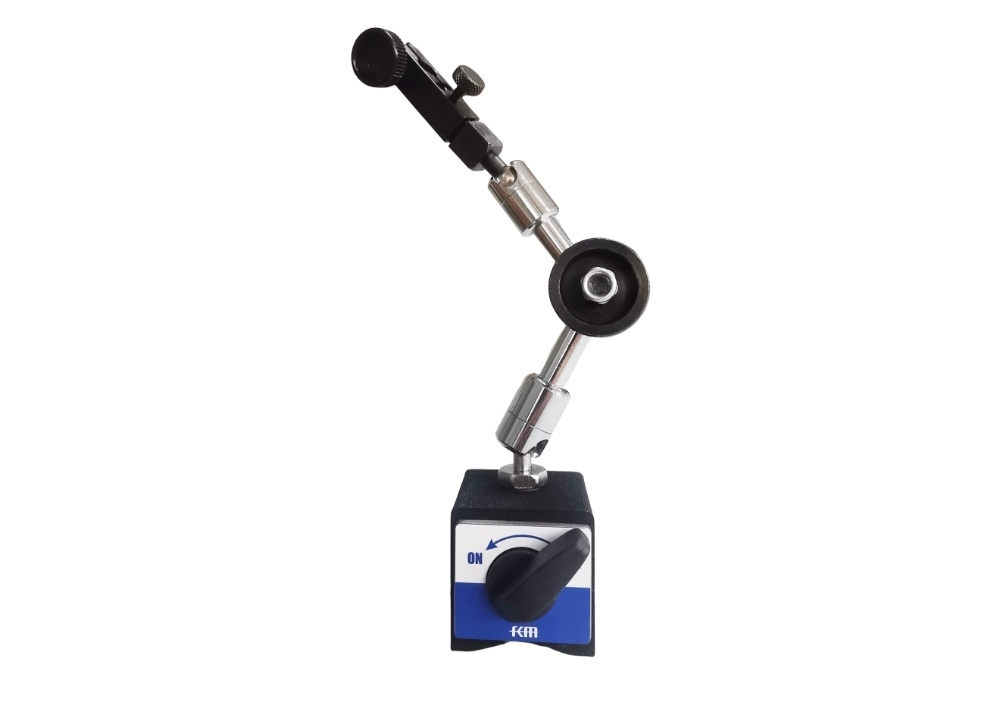

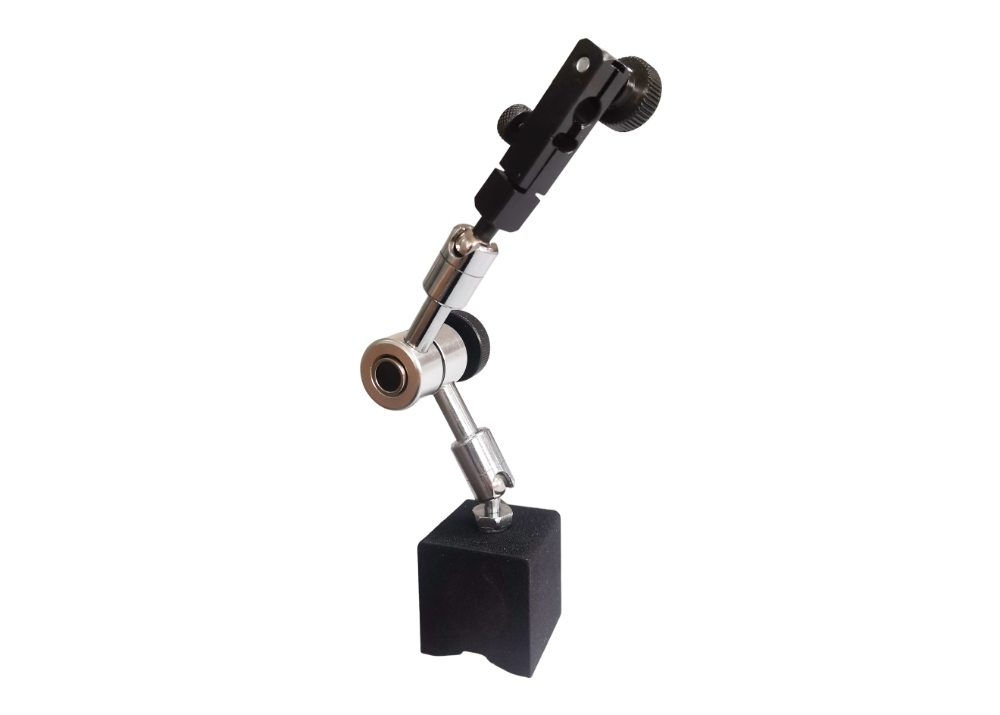

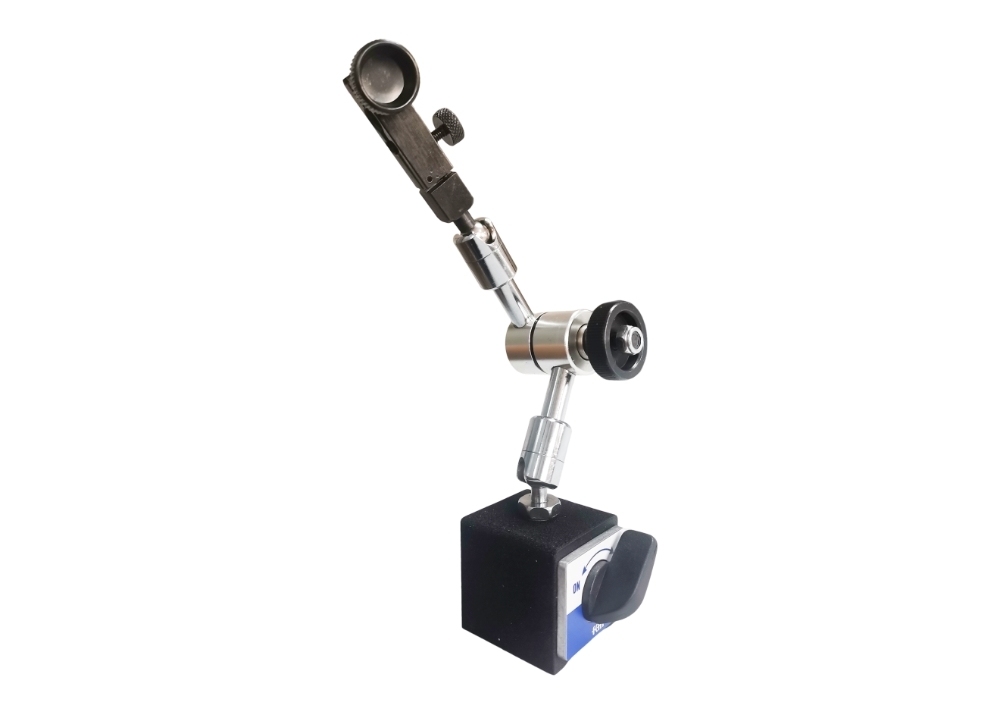

Mini 50kg Mechanical Magnetic Stands For High Precision Measuring Instrument
Mini 50kg Mechanical Magnetic Stands for High Precision Measuring Instrument
Product Description
Our compact 50kg mechanical magnetic stands offer exceptional stability for precision measurement instruments. Designed with portability in mind, these mini magnetic bases feature a space-saving design while maintaining reliable performance.
The base provides strong magnetic adhesion (50kg holding force) to ferromagnetic surfaces, creating a stable platform for measurement tools. Compatible with dial test indicators featuring dovetail grooves as well as standard dial indicators with 8mm or 3/8" stems. Includes a protective fitted case for safe storage and transportation.
Key Features
- Compact, portable design
- Convenient ON/OFF magnetic switch
- 8.0mm clamp hole diameter
- Mechanical arm with central locking mechanism
- Includes protective fitted case
Technical Specifications
| Order No. | Magnetic Force | Applicable Holding Stem Dia | Base Dimensions (L×W×H) |
|---|---|---|---|
| KM-633-02 | 50kg | 8.0mm/Dovetail | 40×40×40mm |
Usage Guidelines
- Place on flat, dry, non-magnetic surfaces only
- Adjust position using knobs/screws before measurement to ensure stable contact
- Minimize vibration and interference during measurement
- Perform regular maintenance checks and replace worn components
Industrial Applications
Widely used in machine building for precision measurement applications. Ideal for inspecting machine tool accuracy, workpiece dimensional accuracy, flatness measurements, and detecting concentricity or parallelism during assembly processes.
Frequently Asked Questions
About Deko Corporation
We specialize in manufacturing KM brand precision measuring tools in China, focusing on development, production, and global distribution.
Product Range
Our catalog includes dial indicators, micrometers, calipers, bore gauges, height gauges, thickness gauges, depth gauges, protractors, gauge blocks, and levels.
Trade Terms
We support FOB, CFR, CIF, and EXW shipping arrangements.
Payment Methods
Accepting T/T, L/C, D/A, D/P, PayPal, and Western Union.
Customization Options
OEM services available for custom requirements.
Warranty & Support
All products include one-year warranty. Defective items will be replaced promptly. Our strict quality control ensures reliable performance.
