ハイライト
Cylinder Bore Measurement Internal Micrometer
,20-25mm Internal Micrometer
,25mm Internal Micrometer
-
保証1年
-
製品タイプ3点内部マイクロメートル
-
測定メトリック/インチ
-
測定対象内径
-
測定範囲20-25mm
-
解決0.005mm
-
正確さ0.004mm
-
アニバータイプ炭化物の先端
-
キャリブレーションリングゲージ含まれています
-
ユーザーマニュアル含まれています
-
パッケージアルミボックス
-
起源の場所陝西省、中国
-
ブランド名KM
-
証明ISO DIN GB RoHS
-
モデル番号KM-2315-25
-
パッケージの詳細アルミボックス 30*17*7 センチメートル/ピース 1.60kg/ピース
-
受渡し時間15日以内
-
支払条件T/T、L/C、D/P、D/A、ウェスタンユニオン、ペイパル、マネーグラム
-
供給の能力50000個/月

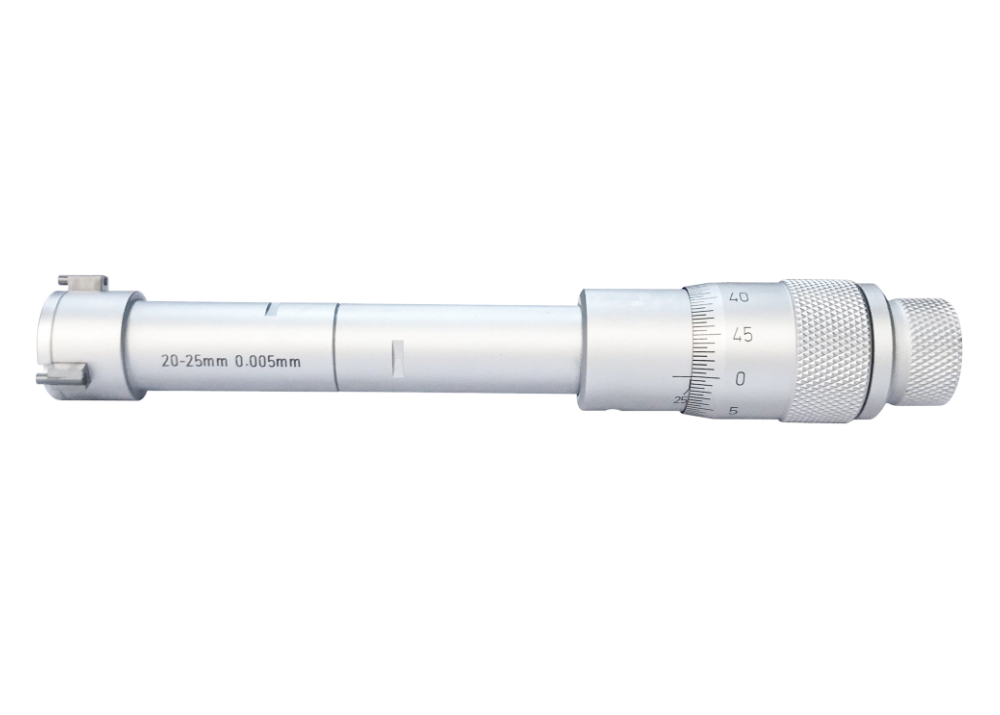

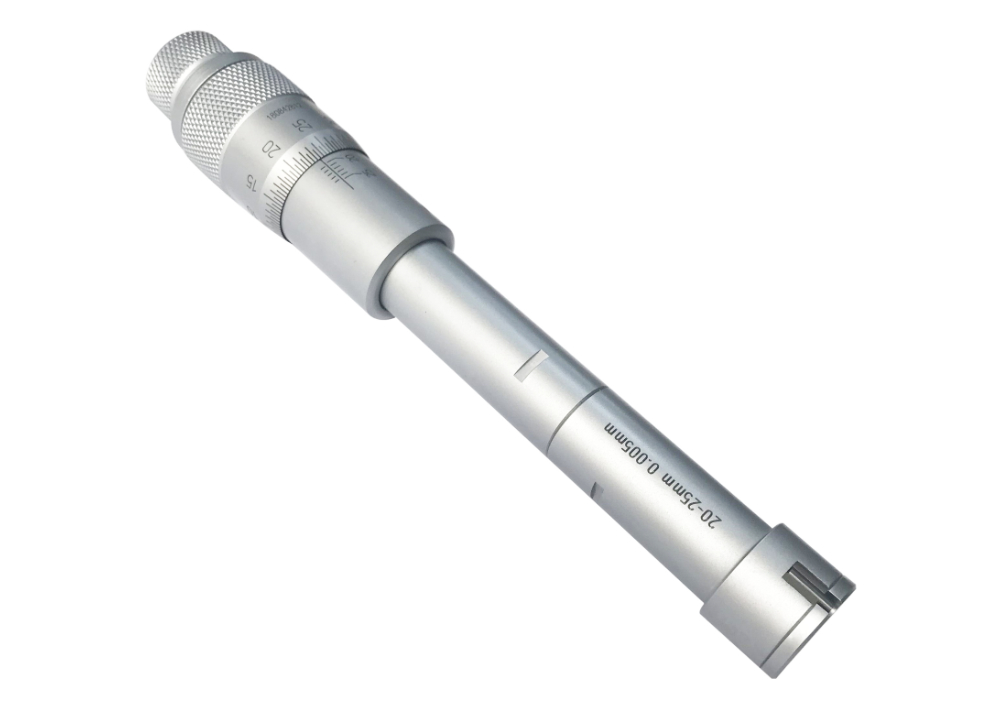

Three-Point Internal Micrometer 20-25mm for for Cylinder Bore Measurement
Three-Point Internal Micrometer 20-25mm for Cylinder Bore Measurement
Key Features
- Three-point micrometer centering self and aligning self.
- Measurement can be taken closer to the bottom of blind bores and deep holes with extension rod.
- Carbide-tipped contacts points with ratchet stop.

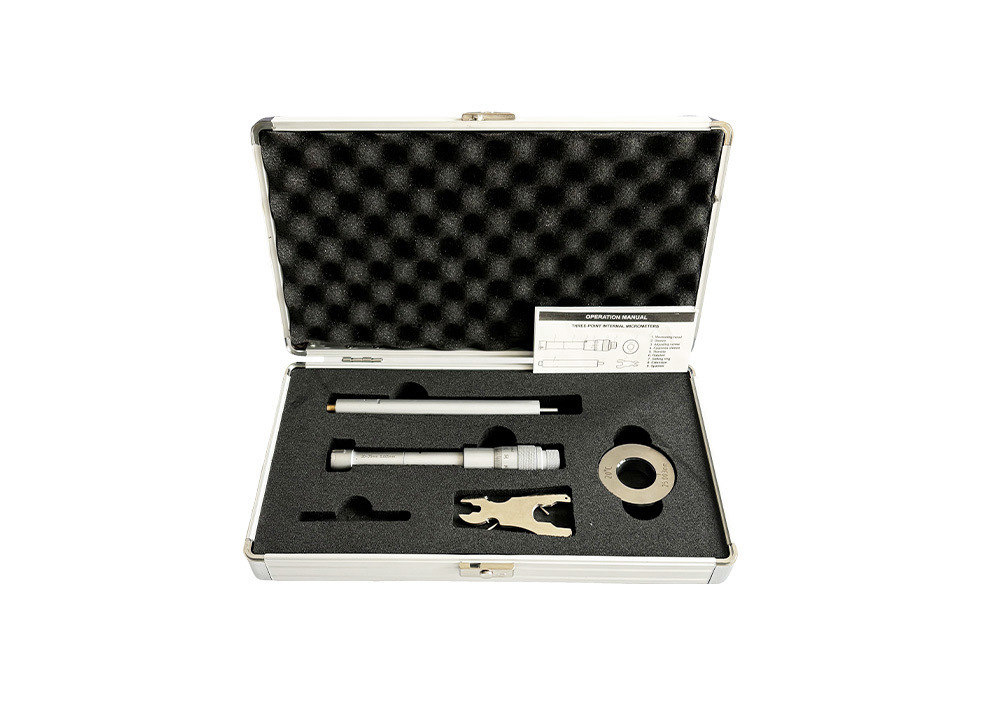

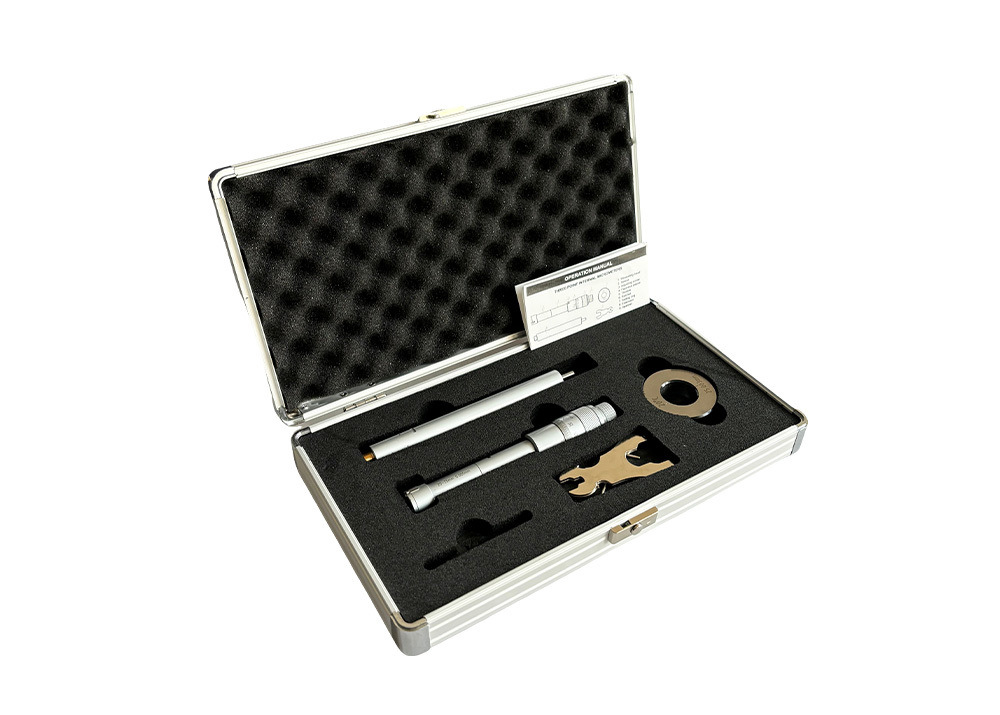

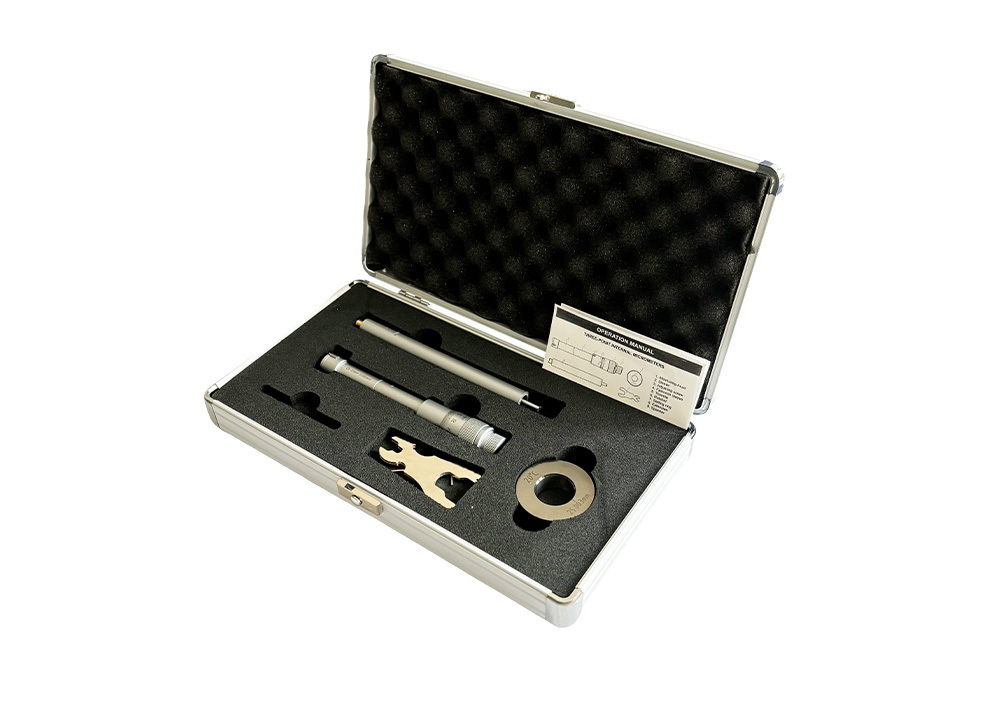

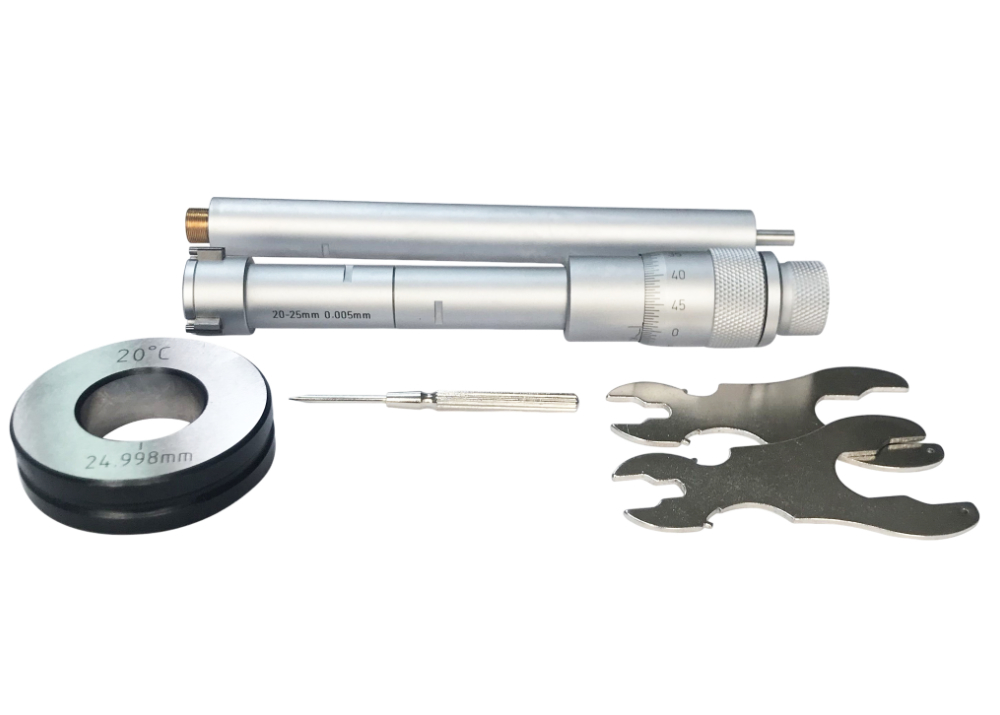

- Supplied with setting rings and fitted case.
Product Description
This three-point internal micrometer series offers measuring ranges from 6-8mm up to 40-50mm, with graduations of 0.001mm
(within 12mm/0.5") or 0.005mm (over 12mm). The carbide-tipped three contact points minimize measurement errors, significantly improving
accuracy compared to calipers.
The self-centering three-point contact design ensures precise bore measurements, particularly effective for blind and through holes.
The micrometer automatically centers and aligns itself for stable, accurate readings.
Complete sets are available covering wide measurement ranges for various industrial applications.
Technical Specifications
Metric Models
| Order No. | Measuring Range | Graduation | Accuracy | Setting Rings | L1 | A | Extension Rods |
|---|---|---|---|---|---|---|---|
| KM-2315-8 | 6-8mm | 0.001mm | ±0.004mm | Φ6mm | 54.5mm | 1.5mm | 100mm |
| KM-2315-10 | 8-10mm | 0.001mm | ±0.004mm | Φ8mm | 54.5mm | 1.5mm | 100mm |
| KM-2315-12 | 10-12mm | 0.001mm | ±0.004mm | Φ10mm | 54.5mm | 1.5mm | 100mm |
| KM-2315-16 | 12-16mm | 0.005mm | ±0.004mm | Φ16mm | 80mm | 0.5mm | 150mm |
| KM-2315-20 | 16-20mm | 0.005mm | ±0.004mm | Φ16mm | 80mm | 0.5mm | 150mm |
| KM-2315-25 | 20-25mm | 0.005mm | ±0.004mm | Φ25mm | 90mm | 0.5mm | 150mm |
| KM-2315-30 | 25-30mm | 0.005mm | ±0.004mm | Φ25mm | 90mm | 0.5mm | 150mm |
| KM-2315-40 | 30-40mm | 0.005mm | ±0.004mm | Φ40mm | 97mm | 0.5mm | 150mm |
| KM-2315-50 | 40-50mm | 0.005mm | ±0.005mm | Φ40mm | 97mm | 0.5mm | 150mm |
Inch Models
| Order No. | Measuring Range | Graduation | Accuracy | Setting Ring | L1 | A | Extension Rods |
|---|---|---|---|---|---|---|---|
| KM-2315-0.35 | 0.275-0.35″ | 0.001″ | ±0.00016″ | 0.275″ | 2.18″ | 0.06″ | 4″ |
| KM-2315-0.42 | 0.35-0.42″ | 0.0001″ | ±0.00016″ | 0.35″ | 2.18″ | 0.06″ | 4″ |
| KM-2315-0.5 | 0.425-0.5″ | 0.0001″ | ±0.00016″ | 0.5″ | 2.18″ | 0.06″ | 4″ |
| KM-2315-0.65 | 0.5-0.65″ | 0.0002″ | ±0.00016″ | 0.65″ | 3.2″ | 0.02″ | 6″ |
| KM-2315-0.8 | 0.65-0.8″ | 0.0002″ | ±0.00016″ | 0.65″ | 3.2″ | 0.02″ | 6″ |
| KM-2315-1 | 0.8-1″ | 0.0002″ | ±0.00016″ | 1″ | 3.6″ | 0.02″ | 6″ |
| KM-2315-1.2 | 1-1.2″ | 0.0002″ | ±0.00016″ | 1″ | 3.6″ | 0.02″ | 6″ |
| KM-2315-1.6 | 1.2-1.6″ | 0.0002″ | ±0.00016″ | 1.6″ | 3.88″ | 0.02″ | 6″ |
| KM-2315-2 | 1.6-2″ | 0.0002″ | ±0.0002″ | 1.6″ | 3.88″ | 0.02″ | 6″ |
Usage Precautions
- Ensure measuring claw and scale are clean and dust-free to maintain accuracy.
- Perform calibration before use to verify correct initial readings.
- Clean and apply anti-rust oil after each use.
- Store in dry, ventilated, dust-free environment.
- Not suitable for measuring rough or burred surfaces.
Industrial Applications
This three-point internal micrometer is designed for precise measurement of holes and slotted holes in various industrial applications including:
- Machinery manufacturing
- Automobile production
- Aerospace components
- Electronic parts manufacturing
Frequently Asked Questions
Who are we?
Deko Corporation specializes in the development, manufacture and marketing of KM brand precision measuring tools in China mainland.
What products do we carry?
Our product line includes dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors, gauge blocks, and levels.
What are the terms of trade?
We support FOB, CFR, CIF, and EXW trade terms.
What are the forms of payment?
We accept T/T, L/C, D/A, D/P, PayPal, and Western Union.
Do we accept customization?
Yes, OEM services are available.
How about after-sales service?
All products come with one year warranty. Defective parts will be replaced promptly. Our strict calibration and inspection processes ensure product quality and reliability.
