50-63mm Three-Point Internal Micrometer for Sub-Micron Accuracy 0.005mm in Bore Gauging

50-63mm Three-Point Internal Micrometer for Sub-Micron Accuracy 0.005mm in Bore Gauging

製品 - マイクロメーター - 3点内微計
  • ハイライト

    63mm 0.005mm Bore Gauging Internal Micrometer

  • 保証
    1年
  • 製品タイプ
    3点内部マイクロメートル
  • 測定
    メトリック/インチ
  • 測定対象
    内径
  • 測定範囲
    50-63mm
  • 解決
    0.005mm
  • 正確さ
    0.005mm
  • アニバータイプ
    炭化物の先端
  • キャリブレーションリングゲージ
    含まれています
  • パッケージ
    アルミボックス
  • 起源の場所
    陝西省、中国
  • ブランド名
    KM
  • 証明
    ISO DIN GB RoHS
  • モデル番号
    KM-2315-63
  • パッケージの詳細
    アルミボックス 26.5*18*15cm/個 3.90kg/個
  • 受渡し時間
    15日以内
  • 支払条件
    T/T、L/C、D/P、D/A、ウェスタンユニオン、ペイパル、マネーグラム
  • 供給の能力
    50000個/月

50-63mm Three-Point Internal Micrometer for Sub-Micron Accuracy 0.005mm in Bore Gauging

  • 50-63mm Three-Point Internal Micrometer for Sub-Micron Accuracy 0.005mm in Bore Gauging
  • 50-63mm Three-Point Internal Micrometer for Sub-Micron Accuracy 0.005mm in Bore Gauging
  • 50-63mm Three-Point Internal Micrometer for Sub-Micron Accuracy 0.005mm in Bore Gauging
  • 50-63mm Three-Point Internal Micrometer for Sub-Micron Accuracy 0.005mm in Bore Gauging
  • 50-63mm Three-Point Internal Micrometer for Sub-Micron Accuracy 0.005mm in Bore Gauging
  • 50-63mm Three-Point Internal Micrometer for Sub-Micron Accuracy 0.005mm in Bore Gauging
価格を取得 接触
50-63mm Three-Point Internal Micrometer for Sub-Micron Accuracy 0.001mm in Bore Gauging
Product Description

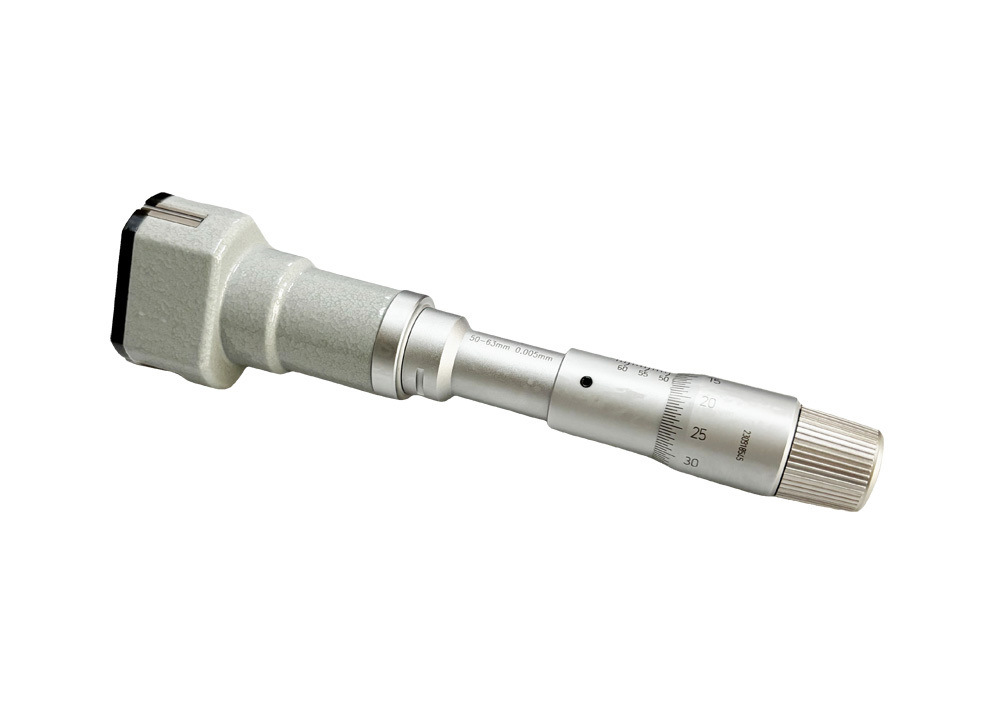

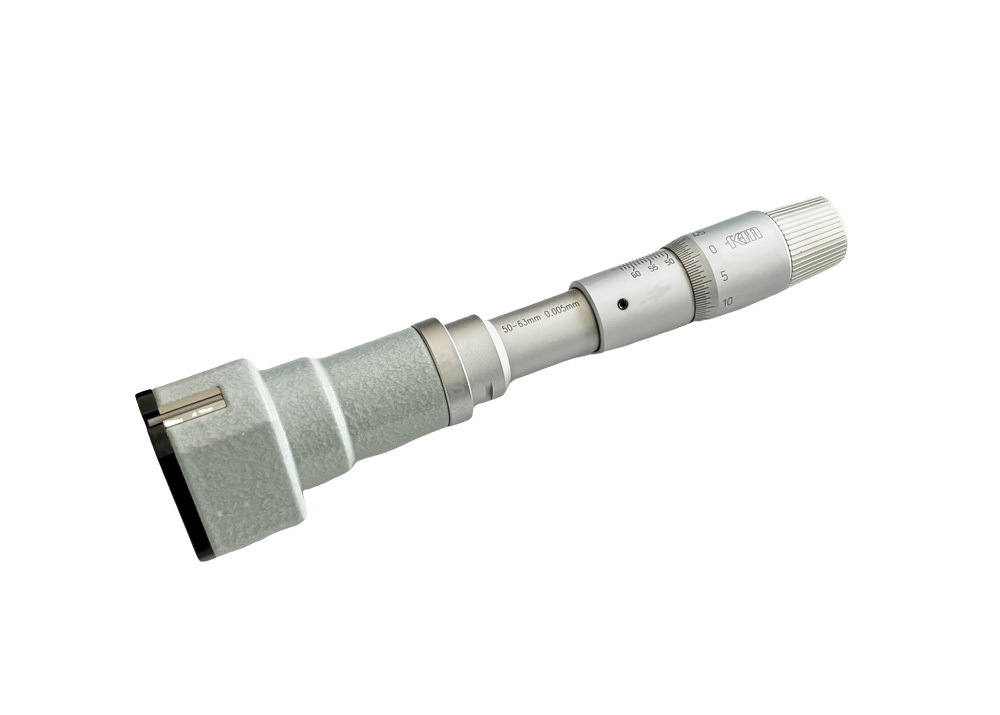

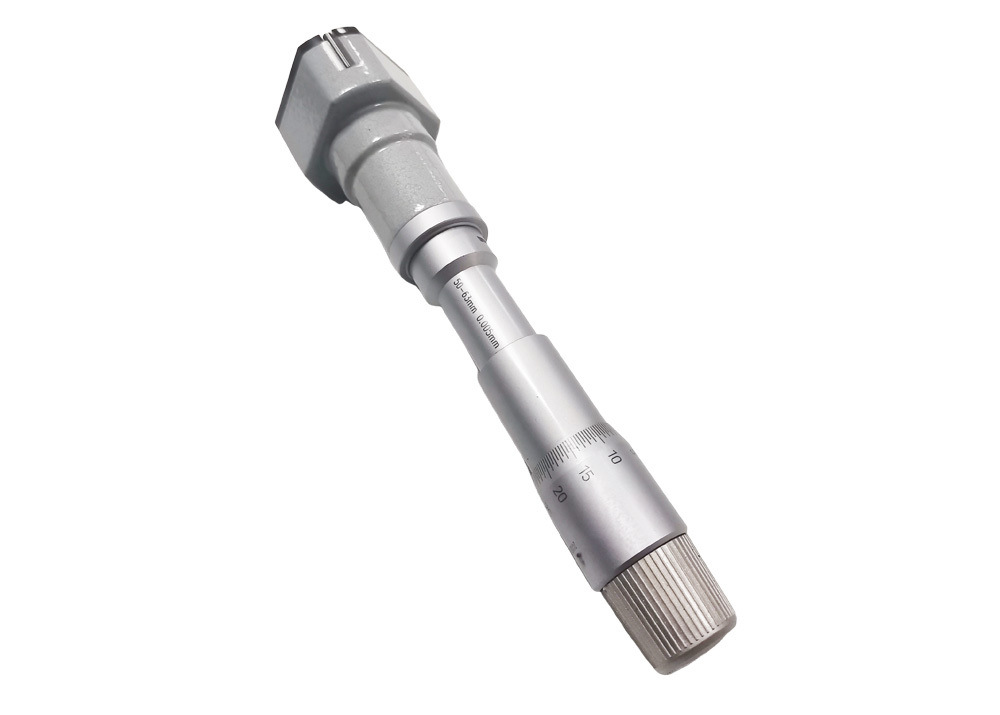

This three-point internal micrometer series offers precise bore measurement with sub-micron accuracy, featuring self-centering

three-point contact for superior alignment and stability.

Key Features
  • Three-point micrometer with automatic centering and self-aligning capability.
  • Capable of measuring close to the bottom of blind bores and deep holes with extension rods.
  • Carbide-tipped contact points with ratchet stop mechanism.
  • Includes setting rings for calibration.

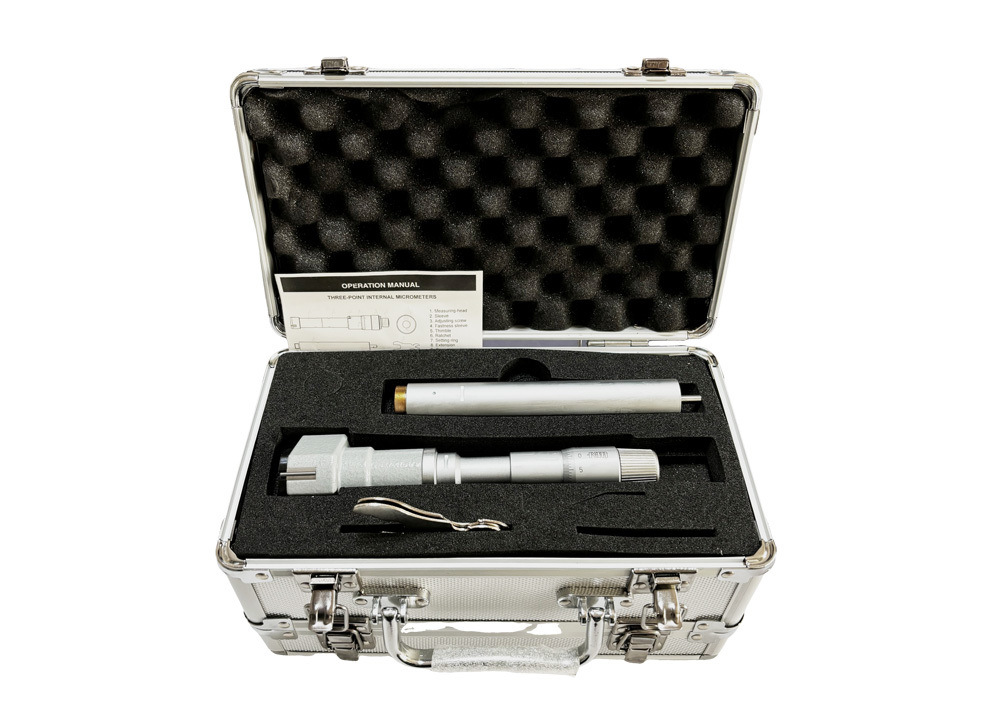

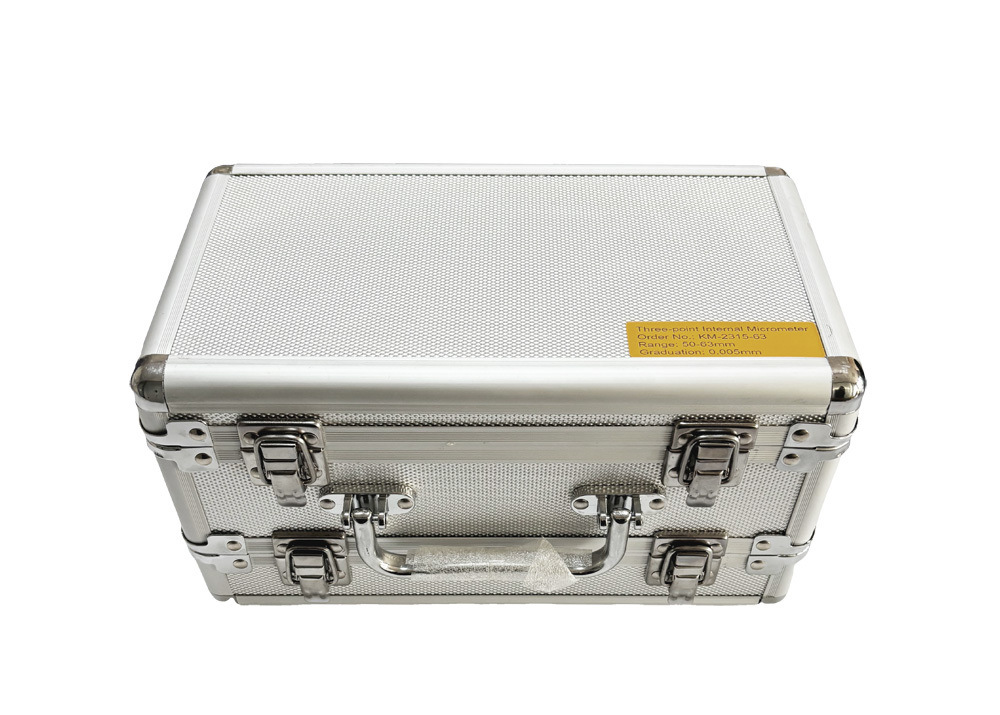

  • Supplied in a protective fitted case.
Technical Specifications
Order No. Measuring Range Graduation Accuracy Setting Rings L1 A Extension Rods
KM-2315-63 50-63mm 0.005mm ±0.005mm Φ62mm 114mm 0.5mm 150mm
Measurement Ranges

Available in multiple ranges: 6-8mm, 8-10mm, 10-12mm, 12-16mm, 16-20mm, 20-25mm, 25-30mm, 30-40mm, 40-50mm. Graduation: 0.001mm within 12mm/0.5'', 0.005mm over 12mm.

Operation Notes
  • Ensure measuring surfaces are clean and dust-free for accurate measurements.
  • Perform calibration before each use to verify initial reading.
  • Clean and apply anti-rust oil after use.
  • Store in dry, ventilated environment away from moisture and heat.
  • Not suitable for measuring rough or burred surfaces.
Applications

Ideal for measuring holes and slotted holes in machinery manufacturing, automotive production, aerospace components, and electronic parts.

Essential tool for high-precision bore diameter measurement.

Frequently Asked Questions
Who are we?

Deko Corporation specializes in developing and manufacturing KM brand precision measuring tools in China.

What products do we carry?

Our product line includes dial indicators, micrometers, calipers, bore gauges, height gauges, thickness gauges, depth gauges, protractors,

gauge blocks, and levels.

What are the terms of trade?

We support FOB, CFR, CIF, and EXW trade terms.

What payment methods do we accept?

We accept T/T, L/C, D/A, D/P, PayPal, and Western Union.

Do we offer customization?

Yes, OEM services are available.

What is the warranty policy?

All products come with a one-year warranty. Defective parts will be replaced upon receipt of notification.
