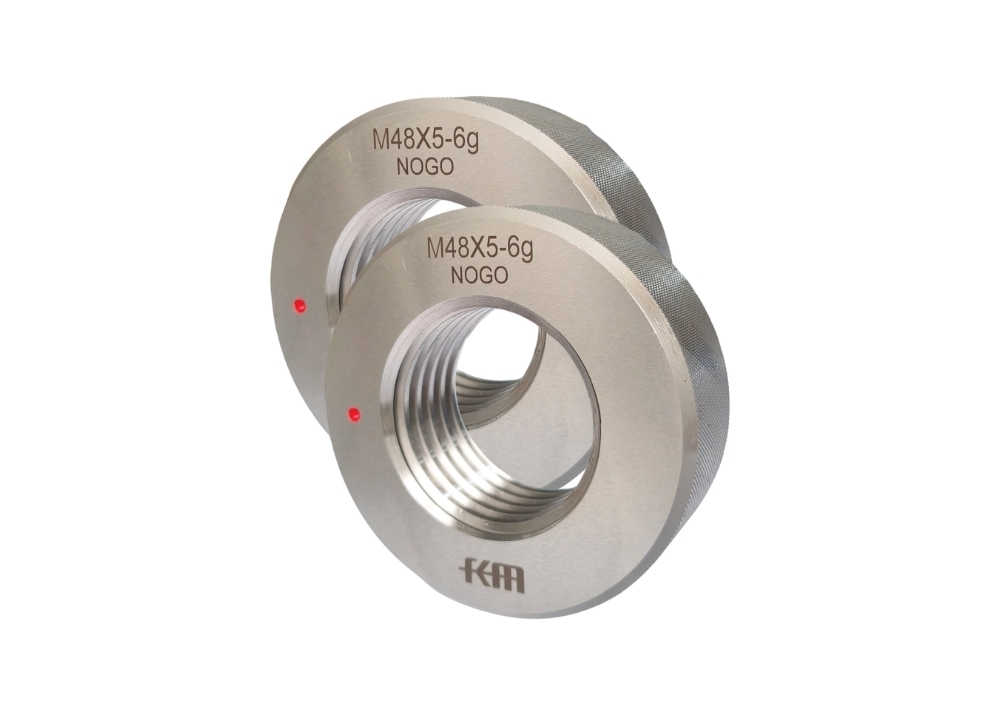

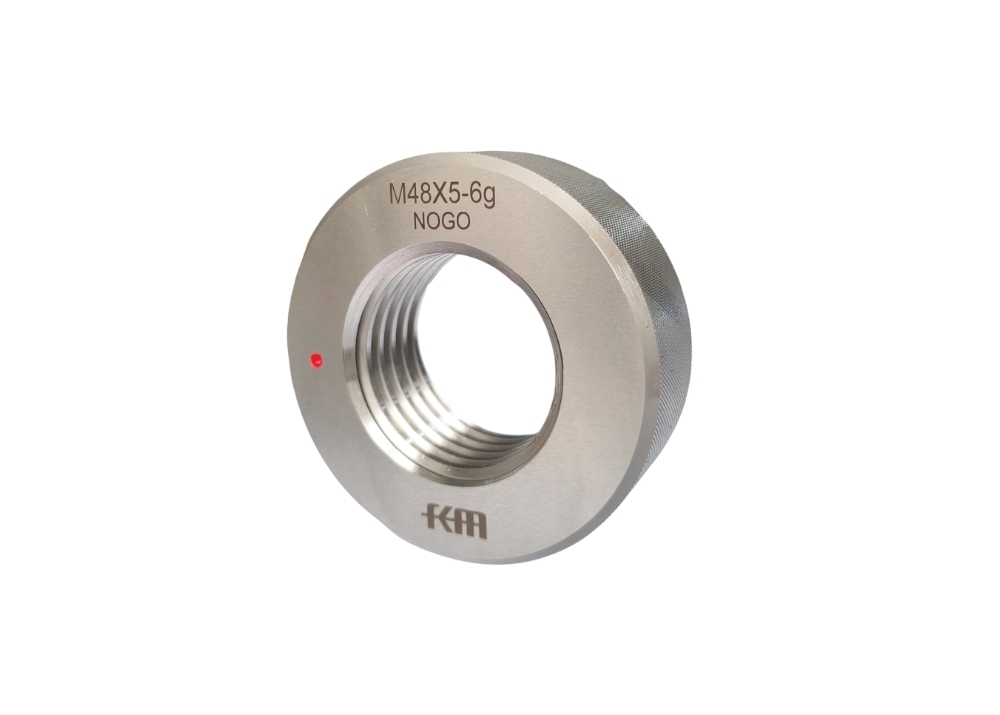

NOGO Type M48X5 Metric Thread Ring Gauge Measuring Instruments with Calibration Certificate
-
ハイライト
Calibration Certificate Ring Gauge M48X5
,Metric Thread Ring Gauge M48X5
-
保証1年
-
タイプスレッドリング・ゲーマー
-
標準DIN13, DIN2280-89
-
測定メトリック
-
ねじ仕様M48x5-6g ノーゴ
-
形ラウンド
-
測定対象ネジ上の外部製品スレッド、ボルト
-
使用法作業・検査用
-
正確さ6g、6h、7g、7h、8g、8hなど
-

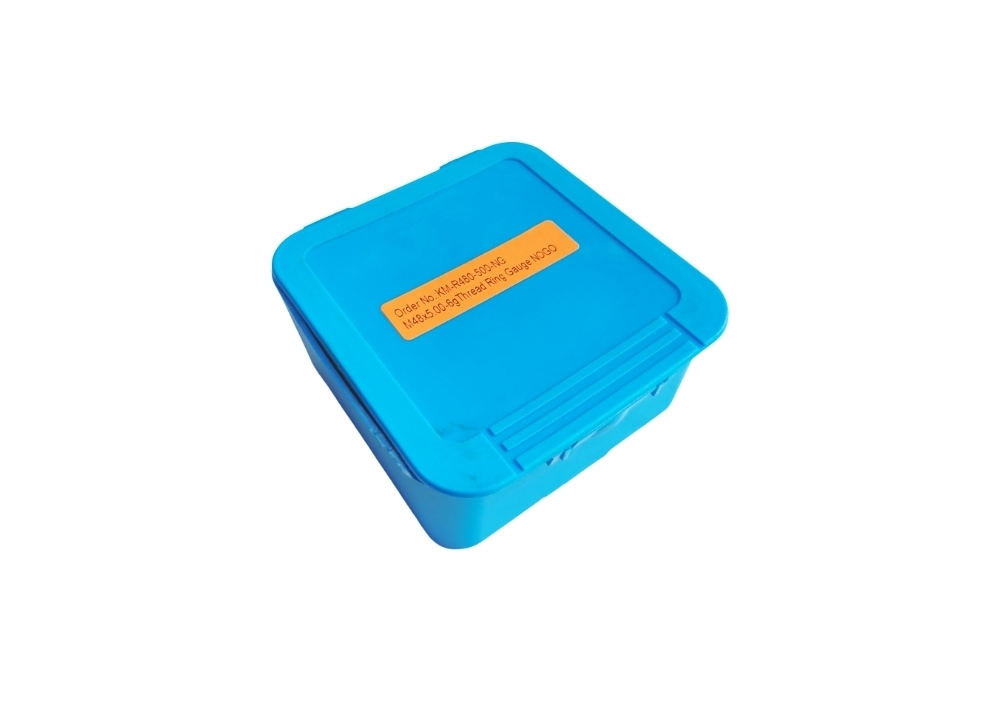

パッケージABSボックス
-
起源の場所陝西省、中国
-
ブランド名KM
-
証明ISO DIN GB RoHS
-
モデル番号KM-R480-500-NG
-
パッケージの詳細ABS ボックス 10*10*5 センチメートル/ピース 1.08kg/ピース
-
受渡し時間15日以内
-
支払条件L/C、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム
-
供給の能力50000個/月
NOGO Type M48X5 Metric Thread Ring Gauge Measuring Instruments with Calibration Certificate
NOGO Type M48X5 Metric Thread Ring Gauge Measuring Instruments with Calibration Certificate
Metric thread ring gauges are precision inspection tools used for checking the thread of outside diameter on screws, bolts and threaded rods. These gauges typically have normal accuracy classifications including 6g, 6h, 7g, 7h, 8g, and 8h.
We utilize first-grade thread machining centers and measuring equipment to provide high precision thread ring gauges to customers worldwide.
Gauge Types
Thread ring gauges come in GO and NOGO types. The GO ring gauge is machined to a minus tolerance for verification at maximum material limit, while the NOGO thread ring gauge is machined to a plus tolerance for verification at minimum material limit.
Key Features
- Metric thread ring gauge system
- Multiple accuracy options: 6g, 6h, 7g, 7h, 8g, 8h
- Available in GO and NOGO types
- Conforms to DIN13 and DIN2280-89 standards
- Wear-resistant and corrosion-resistant construction
- Stable structure for easy operation

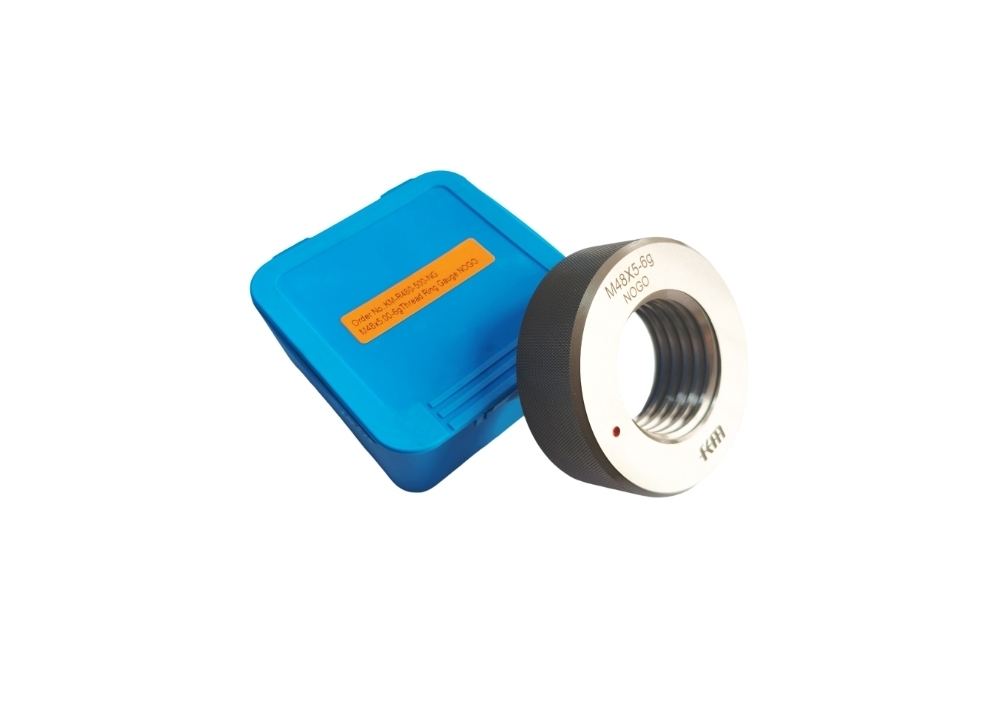

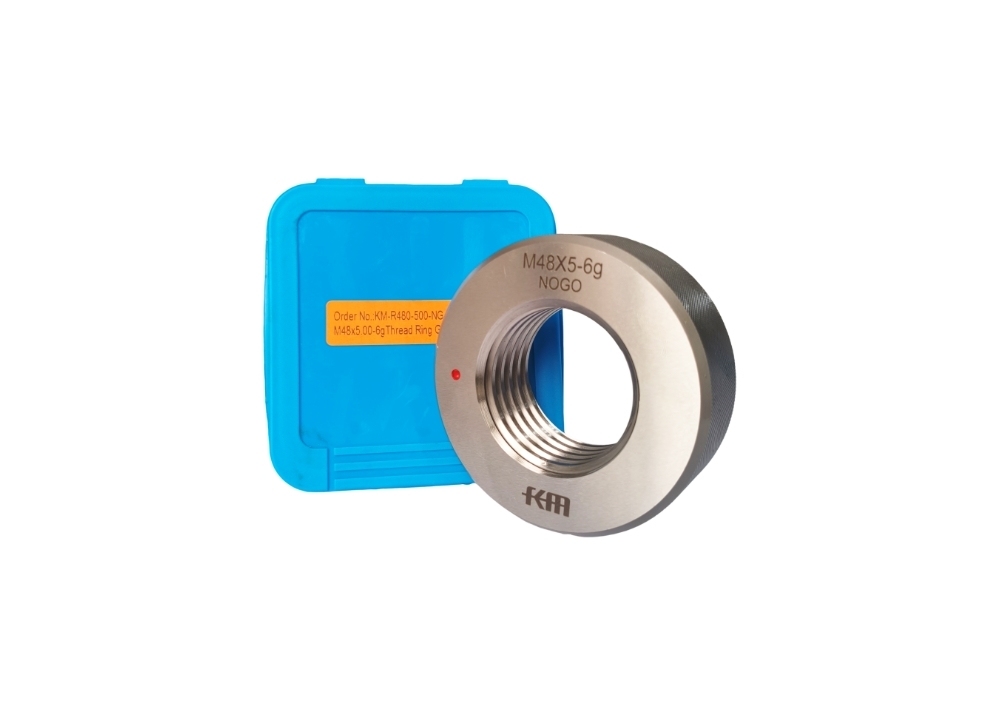

- Includes protective fitted case
Product Specifications
| Order No. | Size | Coarse | Fine | Accuracy |
|---|---|---|---|---|
| KM-R001 | M1.0 | 0.25 | 0.20 | 3h 4h 5g6g 5h4h 5h6h 6e 6f 6g 6h 7g6g 7h6h 8g 8h |
| KM-R011 | M1.1 | 0.25 | 0.20 | |
| KM-R012 | M1.2 | 0.25 | 0.20 | |
| KM-R014 | M1.4 | 0.30 | 0.20 | |
| KM-R016 | M1.6 | 0.35 | 0.20 | |
| KM-R018 | M1.8 | 0.35 | 0.20 | |
| KM-R020 | M2.0 | 0.40 | 0.25 | |
| KM-R022 | M2.2 | 0.45 | 0.25 | |
| KM-R025 | M2.5 | 0.45 | 0.35 | |
| KM-R030 | M3.0 | 0.50 | 0.35 | |
| KM-R035 | M3.5 | 0.60 | 0.35 | |
| KM-R040 | M4.0 | 0.70 | 0.50 | |
| KM-R050 | M5.0 | 0.80 | 0.50 | |
| KM-R060 | M6.0 | 1.00 | 0.75 | 0.50 |
| KM-R080 | M8.0 | 1.25 | 1.00 | 0.75 |
| KM-R100 | M10.0 | 1.50 | 1.25 | 1.00 |
| KM-R120 | M12.0 | 1.75 | 1.50 | 1.25 |
| KM-R140 | M14.0 | 2.00 | 1.50 | 1.25 |
| KM-R160 | M16.0 | 2.00 | 1.50 | 1.00 |
| KM-R180 | M18.0 | 2.50 | 2.00 | 1.50 |
| KM-R320 | M320 |
Applications
These threaded ring gauges are primarily used to measure thread diameter and pitch with high precision. Featuring wide measurement range and simple operation, they are widely used in machinery manufacturing, aerospace, automotive production, and other industrial fields.
Usage Precautions
- Avoid touching the working surface with bare hands to prevent rust
- Store properly on stable surfaces - not on machine tool holders or guide rails
- Inspect regularly for damage, rust, or deformation
- If rust appears, soak in gasoline, wipe carefully, and apply anti-rust oil
- Never store working surfaces together to prevent adhesion damage
- Clean thoroughly after use and store in dry conditions
