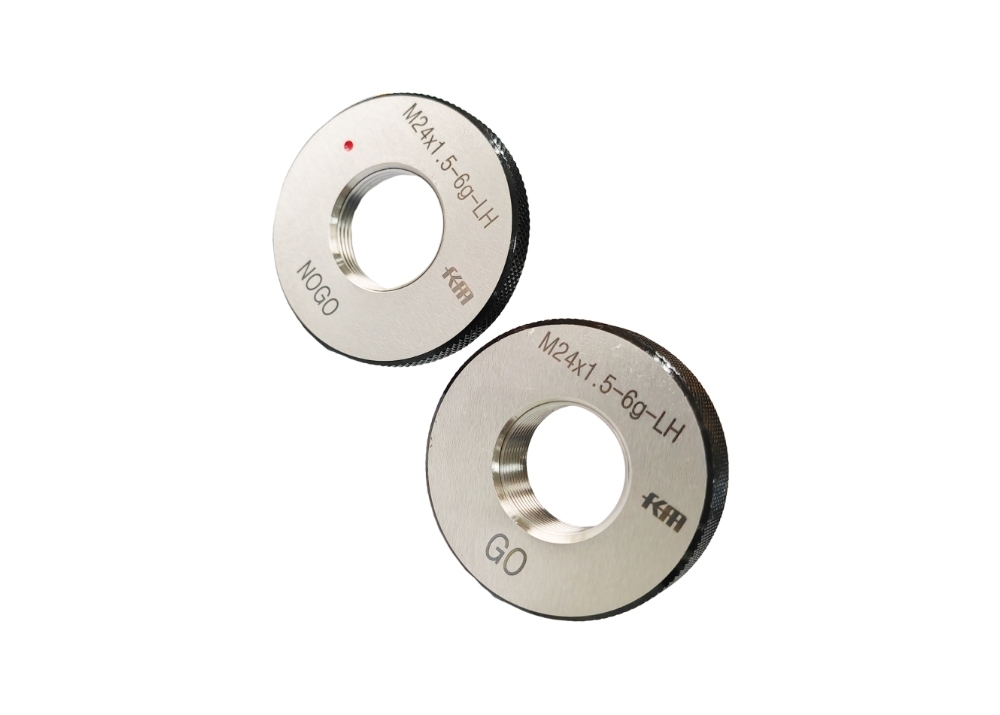

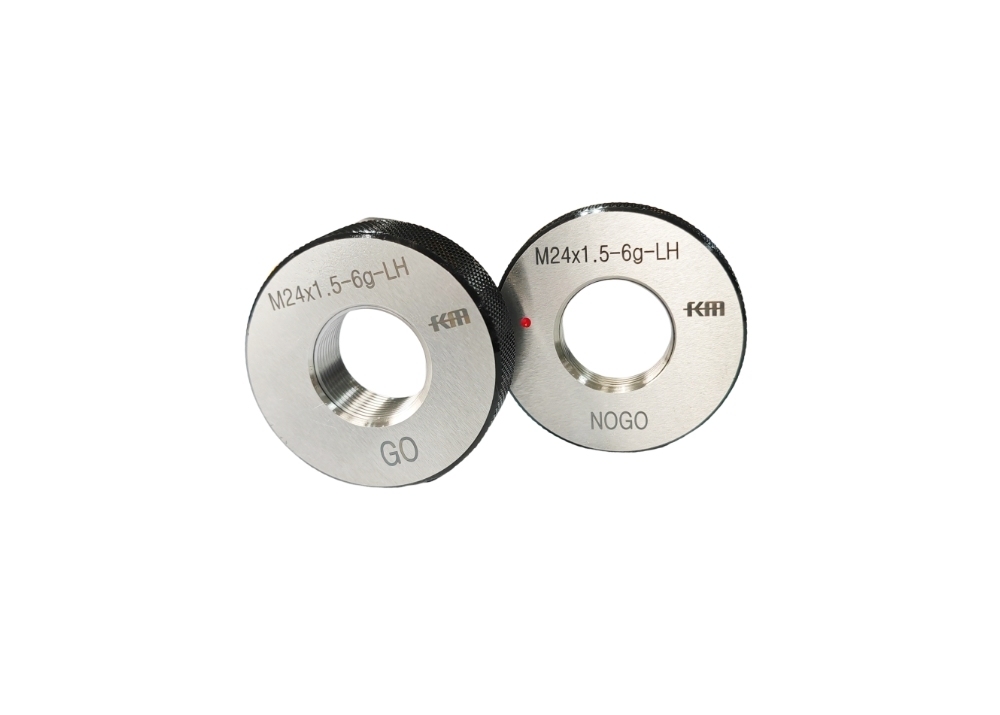

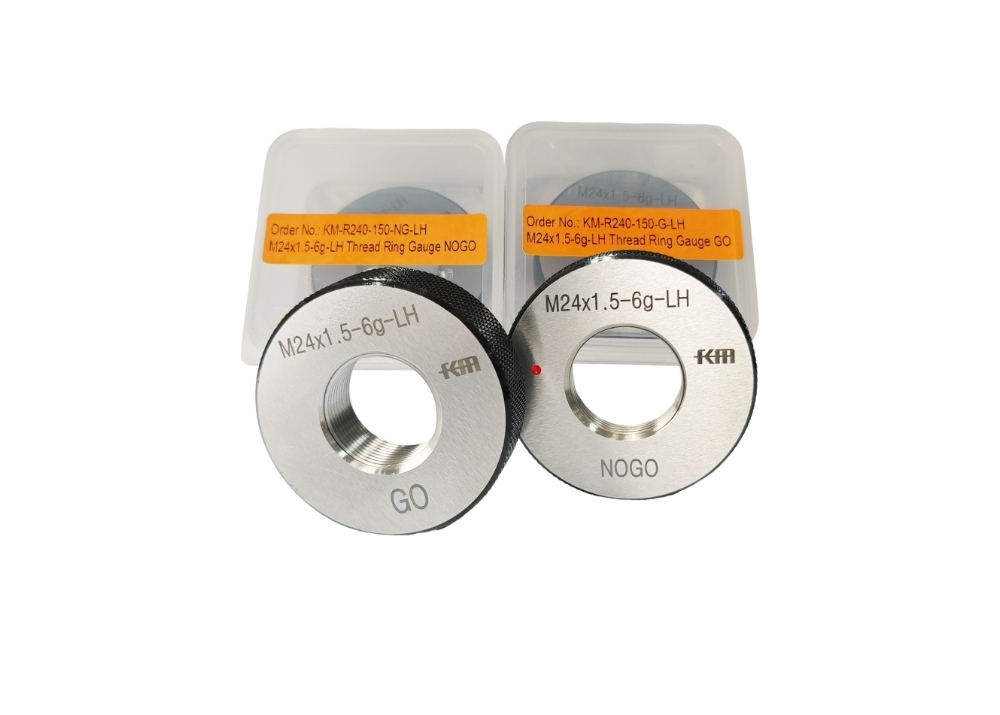

Left Hand M24X1.5 Metric Thread Ring Gauge with 6g Accuracy for Accurate Thread Checking
-
ハイライト
M24X1.5 Thread Ring Gauge
,6g Accuracy Thread Ring Gauge
,Left Hand Metric Thread Ring Gauge
-
保証1年
-
タイプスレッドリング・ゲーマー
-
標準DIN13, DIN2280-89
-
測定メトリック
-
ねじ仕様M24x1.5-6g-LH ノゴ
-
形ラウンド
-
測定対象ネジ上の外部製品スレッド、ボルト
-
使用法作業・検査用
-
正確さ6g、6h、7g、7h、8g、8hなど
-
パッケージABSボックス
-
起源の場所陝西省、中国
-
ブランド名KM
-
証明ISO DIN GB RoHS
-
モデル番号KM-R240-150-LH
-
パッケージの詳細ABS ボックス 7*7*3 センチメートル/ピース 0.36kg/ピース
-
受渡し時間15日以内
-
支払条件L/C、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム
-
供給の能力50000個/月
Left Hand M24X1.5 Metric Thread Ring Gauge with 6g Accuracy for Accurate Thread Checking
Left Hand M24X1.5 Metric Thread Ring Gauge with 6g Accuracy for Accurate Thread Checking
Metric thread ring gauges are precision inspection tools used for checking the thread of outside diameter on screws, bolts and threaded rods. These gauges typically have normal accuracy levels including 6g, 6h, 7g, 7h, 8g, and 8h.
Our facility features first-grade thread machining centers and measuring equipment to provide high precision thread ring gauges to customers worldwide.
Product Features
- Metric thread ring gauge for precise measurements
- Available in multiple accuracy grades: 6g, 6h, 7g, 7h, 8g, 8h
- Includes both GO and NOGO types for comprehensive verification
- Conforms to DIN13 and DIN2280-89 standards
- Wear-resistant and corrosion-resistant construction
- Stable structure for easy operation

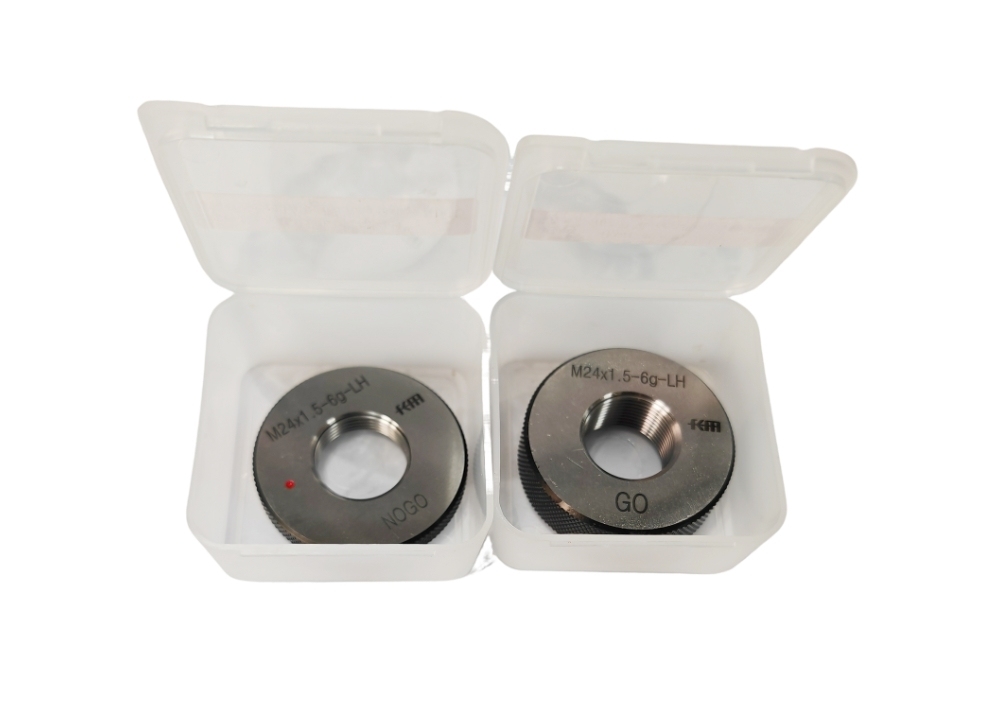

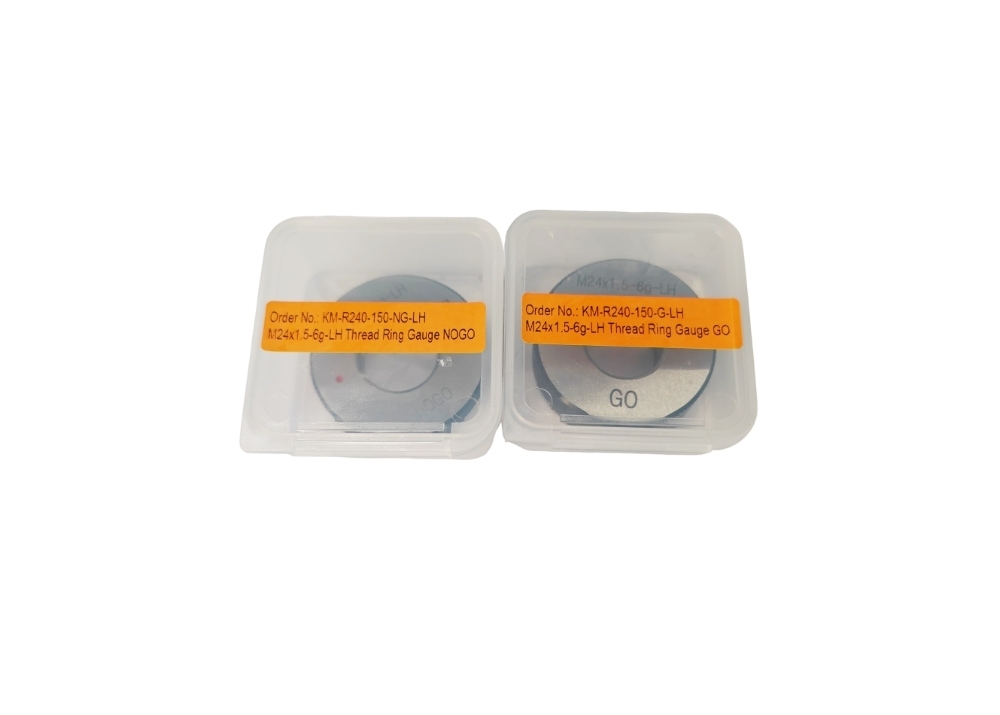

- Supplied in protective fitted case
Technical Specifications
| Order No. | Size | Coarse | Fine | Accuracy |
|---|---|---|---|---|
| KM-R001 | M1.0 | 0.25 | 0.20 | 3h 4h 5g6g 5h4h 5h6h 6e 6f 6g 6h 7g6g 7h6h 8g 8h |
| KM-R011 | M1.1 | 0.25 | 0.20 | |
| KM-R012 | M1.2 | 0.25 | 0.20 | |
| KM-R014 | M1.4 | 0.30 | 0.20 | |
| KM-R016 | M1.6 | 0.35 | 0.20 | |
| KM-R018 | M1.8 | 0.35 | 0.20 | |
| KM-R020 | M2.0 | 0.40 | 0.25 | |
| KM-R022 | M2.2 | 0.45 | 0.25 | |
| KM-R025 | M2.5 | 0.45 | 0.35 | |
| KM-R030 | M3.0 | 0.50 | 0.35 | |
| KM-R035 | M3.5 | 0.60 | 0.35 | |
| KM-R040 | M4.0 | 0.70 | 0.50 | |
| KM-R050 | M5.0 | 0.80 | 0.50 | |
| KM-R060 | M6.0 | 1.00 | 0.75 | 0.50 |
| KM-R080 | M8.0 | 1.25 | 1.00 | 0.75 |
| KM-R100 | M10.0 | 1.50 | 1.25 | 1.00 |
| KM-R120 | M12.0 | 1.75 | 1.50 | 1.25 |
| KM-R140 | M14.0 | 2.00 | 1.50 | 1.25 |
| KM-R160 | M16.0 | 2.00 | 1.50 | 1.00 |
| KM-R180 | M18.0 | 2.50 | 2.00 | 1.50 |
| KM-R320 | M320 |
Applications
The threaded ring gauge is primarily used to measure thread diameter and pitch. With advantages of high precision, wide measurement range, and simple operation, these gauges are widely used in machinery manufacturing, aerospace, automotive manufacturing, and other industrial fields.
Usage Precautions
- Avoid touching the working surface with bare hands to prevent rust
- Store properly on tool cabinet tables or wooden backing plates - never on machine tool holders or guide rails
- Inspect regularly for damage, rust, or deformation
- If rust appears, soak in gasoline, carefully wipe clean, and apply anti-rust oil
- Never store working surfaces of two gauges together to prevent sticking
- After use, wipe clean and store in dry conditions
Packing & Shipping
Company Profile
Frequently Asked Questions
1) Who are we?
Deko Corporation specializes in the development, manufacture, and marketing of KM brand precision measuring tools in China.
Deko Corporation specializes in the development, manufacture, and marketing of KM brand precision measuring tools in China.
2) What are the terms of trade?
We support FOB, CFR, CIF, and EXW terms.
We support FOB, CFR, CIF, and EXW terms.
3) What are the forms of payment?
We accept T/T, L/C, D/A, D/P, PayPal, and Western Union.
We accept T/T, L/C, D/A, D/P, PayPal, and Western Union.
4) Do we accept customization?
Yes, OEM services are available.
Yes, OEM services are available.
