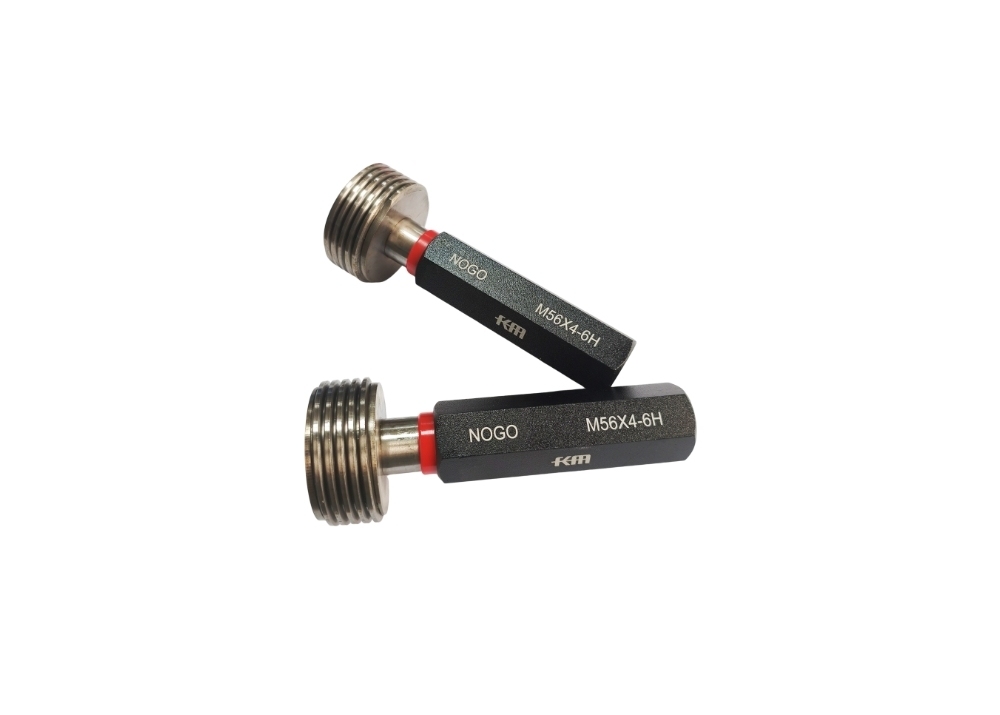

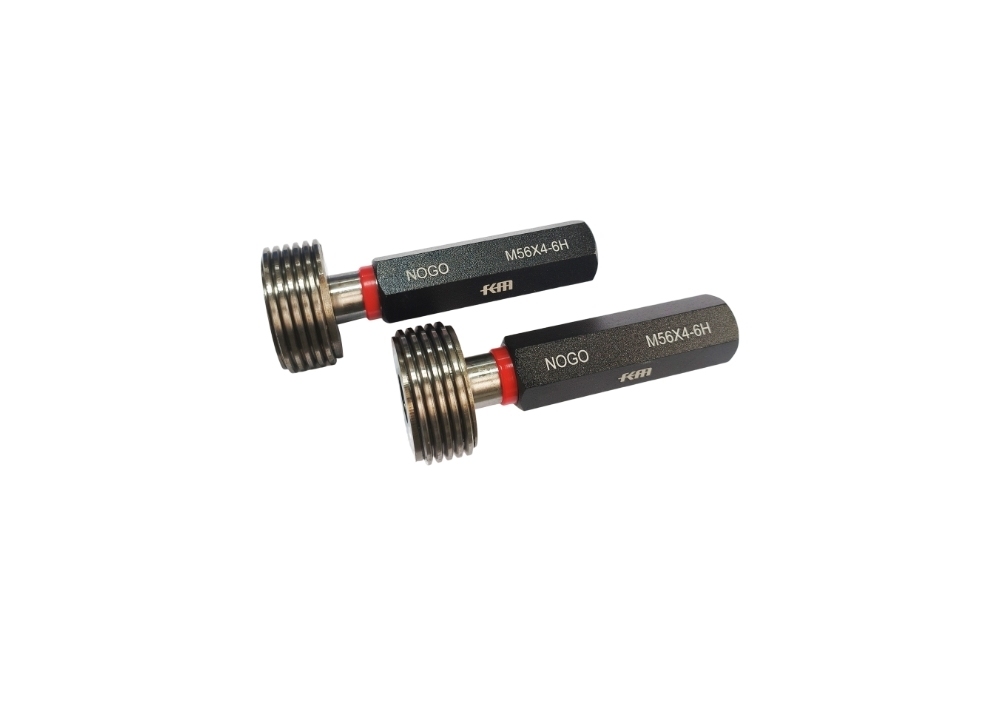

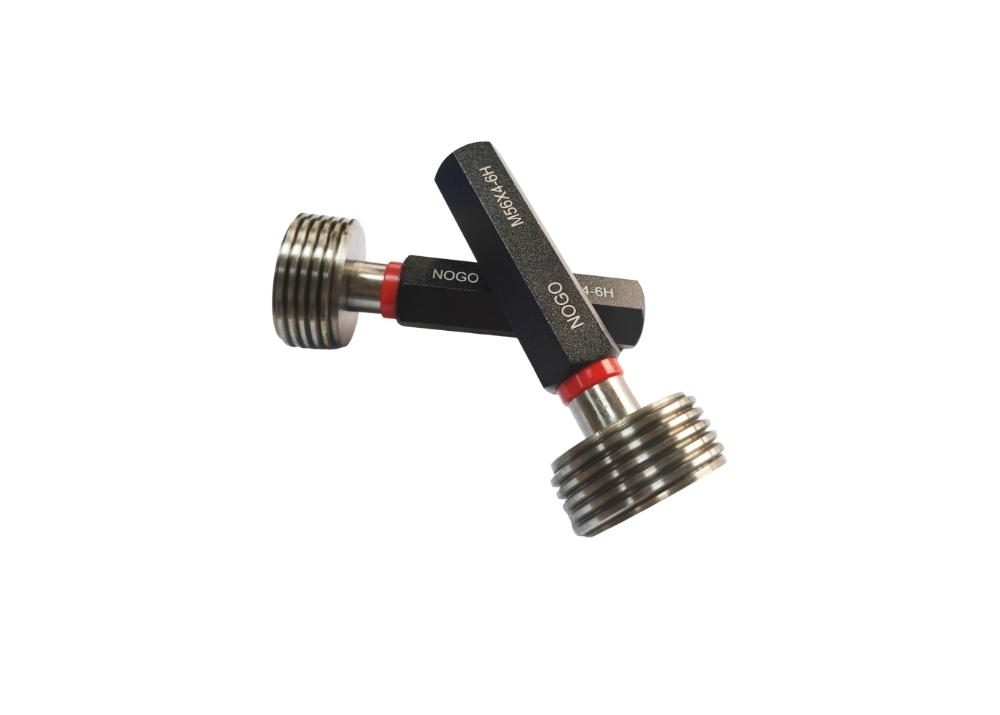

Professional Grade M56X4 Metric Thread Plug Gauge Inspecting Internal Threads On Critical Equipment Parts
-
ハイライト
M56X4 metric thread plug gauge
,Inspect critical equipment Metric Thread
-
保証1年
-
タイプメートルねじプラグゲージ
-
材料工具鋼
-
適合規格DIN13
-
ねじ仕様M54X4-6H ノーゴ
-
正確さ5g、5h、6g、6h、7g、7hなど
-
使用法作業・検査用
-
測定対象ネジ穴やタップ穴などの確認
-
パッケージABSボックス
-
起源の場所陝西省、中国
-
ブランド名KM
-
証明ISO DIN GB RoHS
-
モデル番号KM-P560-400-NG
-
パッケージの詳細ABS ボックス 11*3*3 センチメートル/ピース 0.76kg/ピース
-
受渡し時間15日以内
-
支払条件T/T、L/C、D/P、D/A、ウェスタンユニオン、ペイパル、マネーグラム
-
供給の能力50000個/月
Professional Grade M56X4 Metric Thread Plug Gauge Inspecting Internal Threads On Critical Equipment Parts
Professional Grade M56X4 Metric Thread Plug Gauge
Precision Inspection Tool for Internal Threads on Critical Equipment Parts
Our metric plug ring gauges are precision metrology tools designed for checking threaded or tapped holes. They verify proper thread type, major diameter, minor diameter, pitch diameter, and pitch against mating thread gauges.
Key Features
- Metric thread plug gauge for accurate measurements
- Available in multiple accuracy grades: 5g,5h, 6g,6h,7g,7h
- Three types available: GO, NO GO, and combination GO/NOGO
- Conforms to DIN13 standard
- Wear-resistant and corrosion-resistant construction
- Stable structure for reliable performance

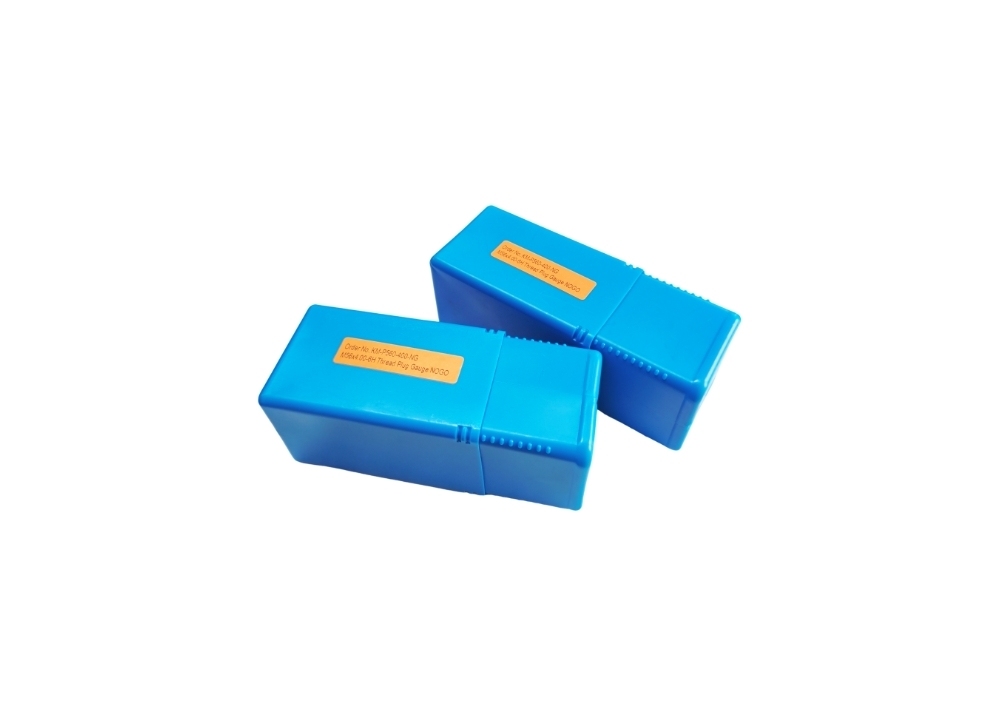

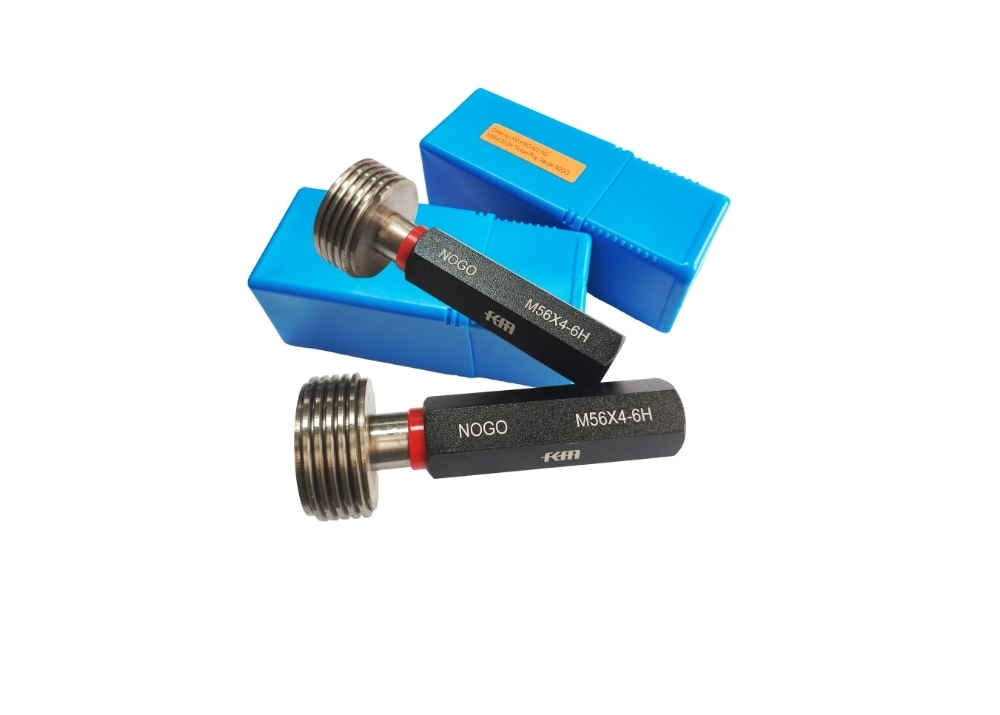

- Includes protective fitted case
Specifications
| Order No. | Size | Coarse | Fine | Accuracy | ||||
| Pitch 1 | Pitch 2 | Pitch 3 | Pitch 4 | Pitch 5 | Pitch 6 | |||
| KM-P180 | M18.0 | 2.50 | 2.00 | 1.50 | 1.00 | 0.75 | 0.50 |
4h 4h5h 5g 5h 5h6h 6g 6h 7g 7h |
| …… | …… | …… | …… | …… | …… | …… | ||
| KM-P320 | M320 | |||||||
These thread plug gauges are essential for quality control in various industries including automobile manufacturing, aerospace, machining, and electronic processing. They help ensure thread accuracy and improve product qualification rates for both standard and non-standard thread products.
Usage Guidelines
- Avoid touching the working surface with bare hands to prevent rust
- Store properly on tool cabinet tables or wooden backing plates - never on machine tool holders or guide rails
- Regularly inspect for damage, rust, or deformation
- For rust removal, soak in gasoline, wipe carefully, and apply anti-rust oil
- Never store working surfaces together to prevent sticking
- Always clean and store in dry conditions after use
Packing & Shipping
Manufacturer Information
Deko Corporation specializes in the development, manufacture, and marketing of KM brand precision measuring tools in China mainland.
Product Support
Product Range:
We offer a comprehensive range of precision measuring tools including dial indicators, micrometers, calipers, bore gauges, height gauges, and various other measurement instruments.
Warranty & Service:
All products come with a one-year warranty. Our strict calibration and inspection processes ensure top-quality products. For any defective items received, we provide replacement parts or products promptly.
