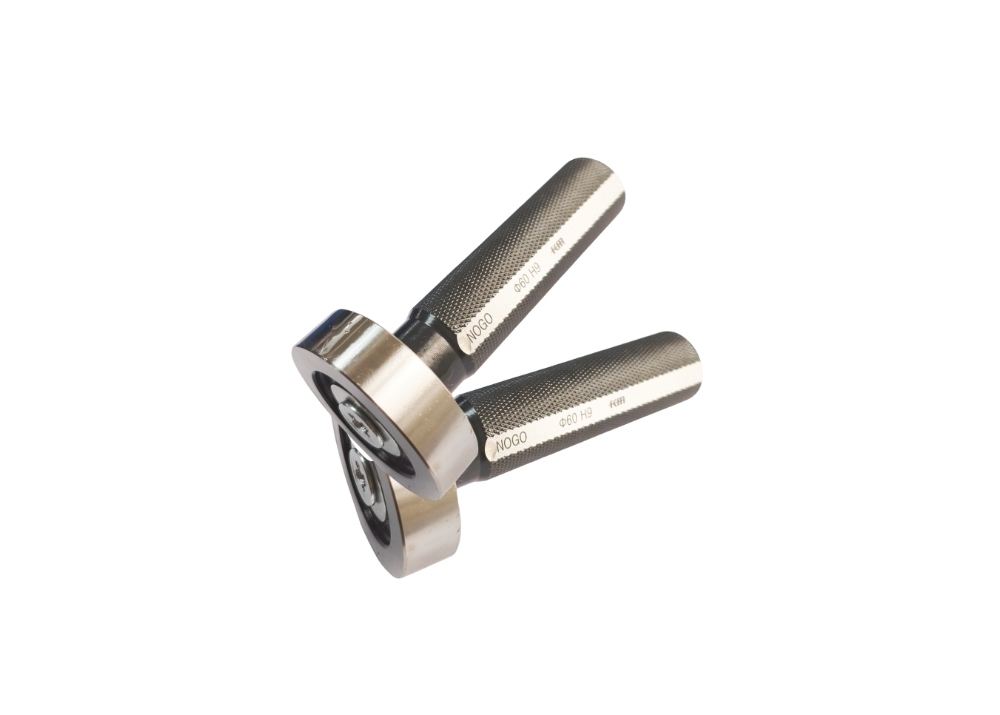

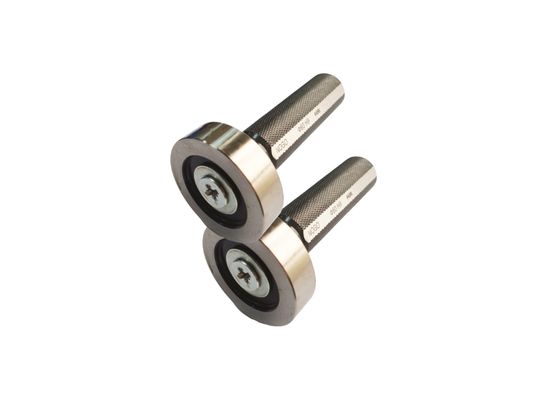

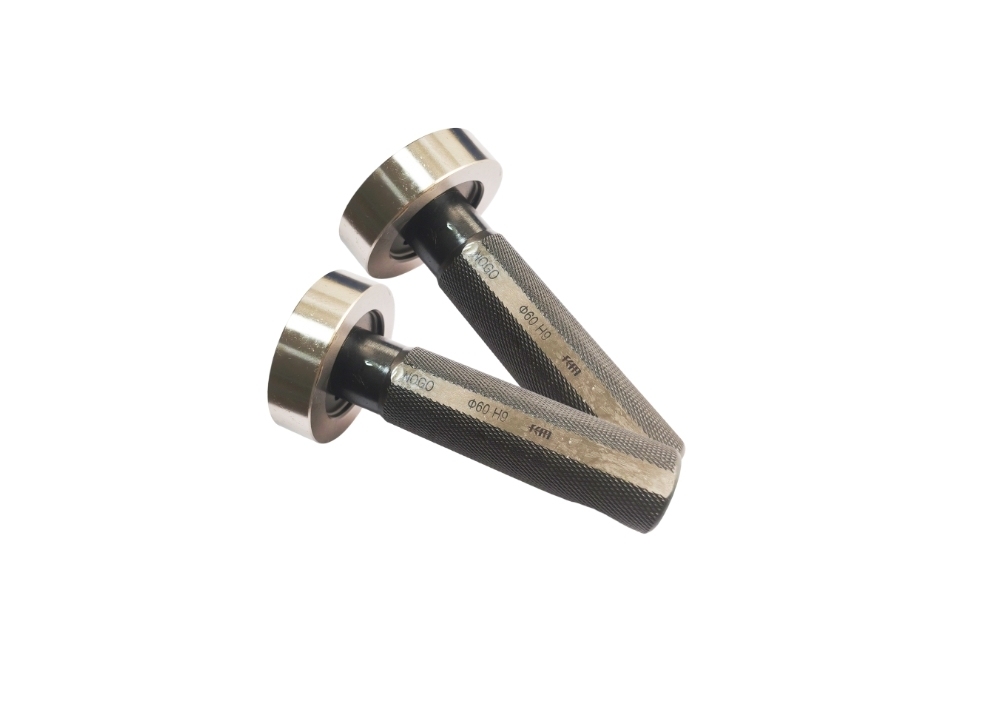

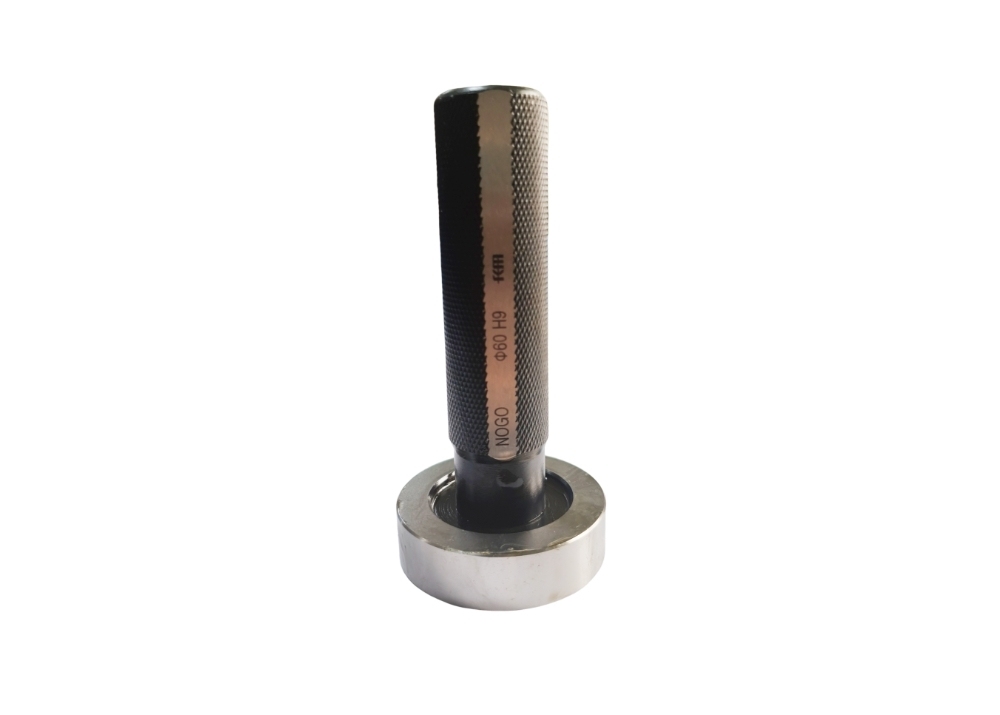

Steel Tool High Precision ø60 H9 Plain Plug Gauge with H9 Tolerance Grade in Workpieces DIN7162
-
ハイライト
ø60 H9 Plain Plug Gauge
,High Precision Plug Gauge
,Steel Tool Plug Gauge
-
保証1年
-
タイプ滑らかなプラグゲージ
-
測定対象内部の穴の大きさ
-
適合規格din7162
-
サイズø60 H9
-
材料Gcr15鋼
-
使用法作業・検査用
-
正確さH6 H7 H8
-
試験方法チェック方法を介して
-
パッケージABSボックス
-
起源の場所陝西省、中国
-
ブランド名KM
-
証明ISO DIN GB RoHS
-
モデル番号KM-PP60-H9-NG
-
パッケージの詳細ABS ボックス 14*5*3 センチメートル/ピース 0.40kg/ピース
-
受渡し時間15日以内
-
支払条件T/T、L/C、D/P、D/A、ウェスタンユニオン、ペイパル、マネーグラム
-
供給の能力50000個/月
Steel Tool High Precision ø60 H9 Plain Plug Gauge with H9 Tolerance Grade in Workpieces DIN7162
Steel Tool High Precision ø60 H9 Plain Plug Gauge with H9 Tolerance Grade in Workpieces DIN7162
Deko Corp provides a complete line of smooth plug gauges available in sizes from 1.8 to 300 mm. These precision measuring tools are designed to accurately measure the inner hole size of workpieces. Each gauge features both GO (minimum limit size) and NOGO (maximum limit size) ends for comprehensive measurement verification.
Key Features
- Smooth plug gauge for precise hole measurement
- Available in multiple accuracy grades: H6, H7, H8
- GO and NOGO or combination GO/NOGO types
- Conforms to DIN7162 standard
- Wear-resistant and corrosion-resistant construction
- Stable structure for easy operation
- Supplied in protective fitted case
Specifications
| Size (mm) | Accuracy |
|---|---|
| 58 | H6 H7 H8 |
| ... | |
| 300 |
Applications
- Hole inspection to verify workpiece dimensions meet design requirements
- Quality control during production processes
- Standardized production to ensure dimensional consistency across batches
Usage Precautions
- Inspect gauge surface for cleanliness and defects before use
- Use only during valid inspection period with proper documentation
- Maintain measurement temperature near 20°C with minimal force
- Insert/remove gauge along hole axis without tilting or rotating
- Clean thoroughly after each use to maintain accuracy
Packing & Shipping
Company Profile
Frequently Asked Questions
Who are we?
Deko Corporation specializes in the development, manufacture and marketing of KM brand precision measuring tools in China mainland.
Deko Corporation specializes in the development, manufacture and marketing of KM brand precision measuring tools in China mainland.
What products do we carry?
Our product range includes dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors, gauge blocks, levels, and more.
Our product range includes dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors, gauge blocks, levels, and more.
How about after-sales service?
All products come with one year warranty. Defective items will be replaced promptly. Our strict calibration and inspection processes ensure reliable product quality.
All products come with one year warranty. Defective items will be replaced promptly. Our strict calibration and inspection processes ensure reliable product quality.
